The heavyweight of our range, the FBT3 is a low speed, high torque unit designed with pellet fired appliances and fresh brew vending systems in mind, although it is equally suited for many other applications. High quality engineering ensures a quiet and long running life. Available with SC9 AC, DC and Brushless DC versions to suit a wide range of applications. Output shaft length and diameter to suit individual customer requirements.

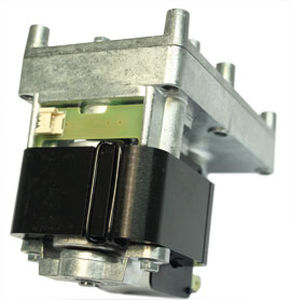

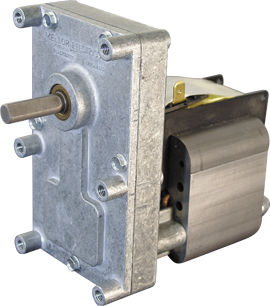

FBT3 Series AC Gear Motors

Available in 5 motor sizes (19mm - 50mm)

Output Torque: Up to 35Nm, depending on speed and motor size

Speed Range: 0.8 - 50rpm

The T3 AC Gear Motor is suitable for use in: pellet stoves, pellet burners, pellet boilers, agricultural equipment, composting (waterless) toilets, food and restaurant equipment - conveyor toasters, kebab machines, hot dog rollers, scientific equipment, medical equipment, packaging equipment, vending machines, fresh brew coffee systems, ice makers, peristaltic pumps, diagphragm pumps, amusement machines, point of sale displays, instrumentation & turntables.

Parameter Name	Parameter Value
Motor type	AC
Shaft orientation	parallel-shaft
Power (W)	20000 - 50000
Torque (Nm)	20 - 50
Product applications	for conveyors for heating for burners for boilers for gears for granulates for plates for pumps stove
Other characteristics	low-noise solid-shaft
