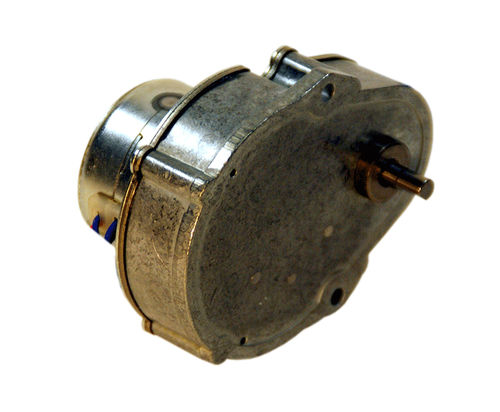

AC gear-motor LYG35

AC gear-motor LYG35

AC gear-motor LYG35

About


Frame Size: 35mm
Output Speed: .3 to 300 RPM
Standard Voltages: 115 Vac & 24 Vac 50/60 Hz
Insulation Class: Class A (105°C)
Lead Wire: 4 leads 28AWG (approx. 9 inches [228.6 mm])
Gear Unit: Zinc Die Cast - AGMA 7 Standard with hardened steel gears
Shaft Bearings: Sleeve bearings
Recognition: E53578(N), Component-Impedance Protected Motors
Capacitor is required for operation. Capacitor supplied with 115 Vac motors.
Note: Typical data subject to change without notification



PARAMETERS

Parameter Name Parameter Value
Motor type
  • AC
  • permanent magnet
  • synchronous
Type
spur
Shaft orientation
parallel-shaft
Power (W)
0 - 10
Voltage (V)
24 - 24
Torque (Nm)
  • 1 - 5
  • 0.5 - 1
  • 0.2 - 0.5
  • 0.1 - 0.2
  • 0 - 0.1
Other characteristics
permanent magnet
Gear ratio (unit)
2 - 900
Operating temperature (°C)
-10 - 40
