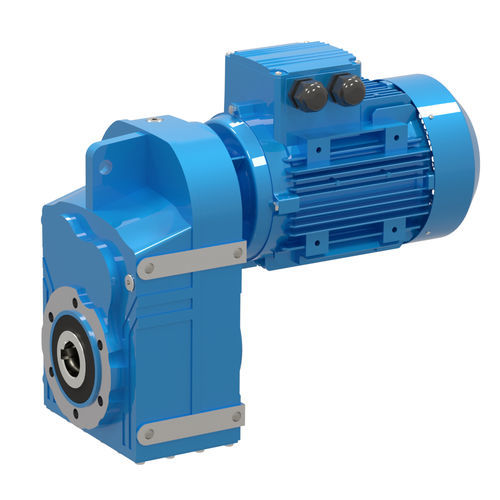

Helical gear units, their input and output shafts are parallel and they can be connected to machines from sides of housing, with torque arm or from output flange.

• Monoblock housing design
• Additional reduction stages available upon request
• Bearing solutions for high radial and axial loads
• Output shaft options (Hollow shaft, solid shaft, shrink disk, hollow and solid splines)
• Extruder output option for extruder machines (DRE Type)

Parameter Name	Parameter Value
Motor type	AC
Type	helical
Shaft orientation	parallel-shaft
Shaft configuration	hollow-shaft
Power (W)	100 - 500 500 - 1000 1000 - 2000 2000 - 5000 5000 - 10000 10000 - 20000 20000 - 50000 50000 - 100000 100000 - 200000
Torque (Nm)	100 - 200 200 - 500 500 - 1000 10000 - 10000 1000 - 2000 2000 - 5000 5000 - 10000
Product applications	flange
Other characteristics	two-stage three-stage
Gear ratio (unit)	4 - 24963
