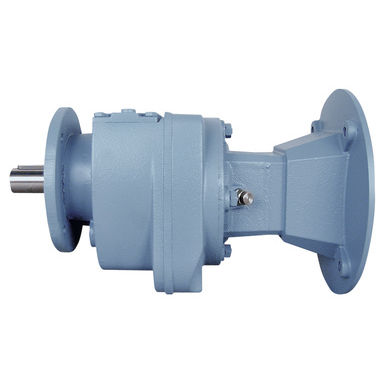

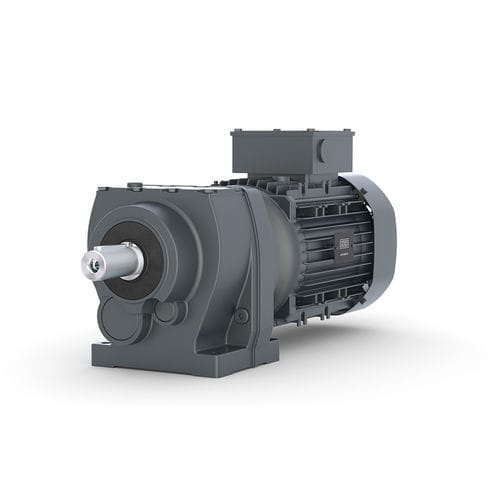

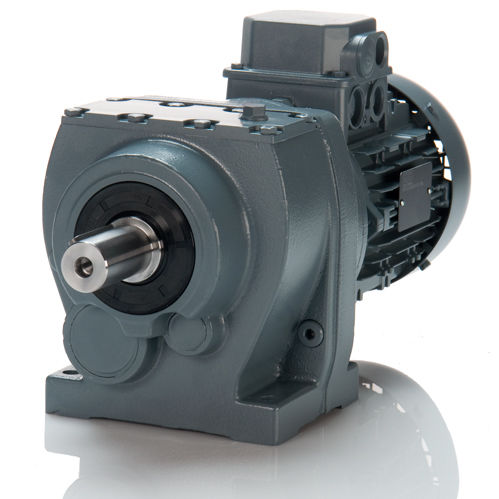

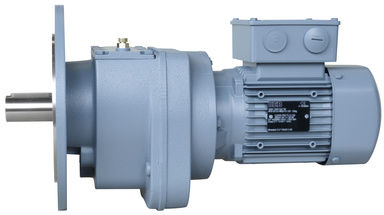

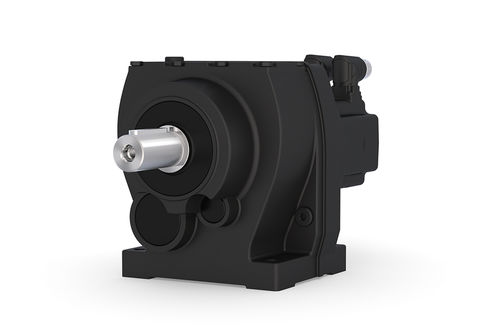

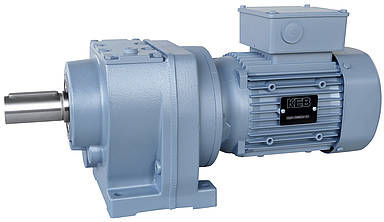

Helical gears are characterised by a high degree of efficiency, and are optimally designed for a range of standard applications. They have an extremely compact design in relation to torque. Various drive combinations are possible in conjunction with KEB motors up to 45 kW. With the helical geared motors from the G_D…/G_TA… series, torque values from 60 Nm to 13,600 Nm can be implemented. Finely tuned reduction ratios can be selected for the transmission of power and speed. Thanks to the many options and customisation possibilities, individual solutions for various applications and industries can be arranged with KEB’s modular systems.

Axially parallel drives in a “classic arrangement” with solid shaft

KEB’s G gear units can be equipped with motor adapters meeting different standards, or with free input shafts, in place of the motor.
Possible motor adapters for:

IEC motors
NEMA motors
Servo motors

Parameter Name	Parameter Value
Motor type	AC permanent magnet asynchronous
Type	spur helical
Shaft orientation	coaxial
Power (W)	500 - 1000 1000 - 2000 2000 - 5000 5000 - 10000 10000 - 20000 20000 - 50000
Torque (Nm)	10000 - 10000
Product applications	industrial flange
Other characteristics	IE3 low-backlash
