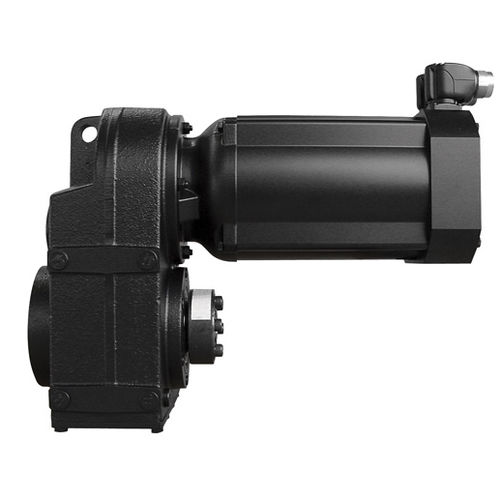

COMBIGEAR F Flat gear servo motors
7 sizes of flat gear units can be combined with different motor sizes, for optimum connection with the machine due to the compact design and easy installation by direct plug-on device.

Output torque up to 8900Nm and minimum output speeds of 1.3 rpm make the flat gear combined with servo-motor a true alternative to conventional planet gears.

Properties
■ 6 installation positions
■ Plug-on or flange mounted
■ Shaft, hollow shaft or toothed hollow shaft
■ Optional: reduced torsional backlash, rubber pad, non-return device, spring-applied brake, permanent magnet brake, special colour range
Add-on alternative
■ Motor adapter S70 to S190
■ Free input shaft

Parameter Name	Parameter Value
Motor type	AC
Type	planetary
Shaft orientation	parallel-shaft
Torque (Nm)	1 - 5 5 - 10 10 - 20 20 - 50 0.5 - 1 50 - 100
Product applications	for machines
Other characteristics	compact shaft-mounted low-backlash
