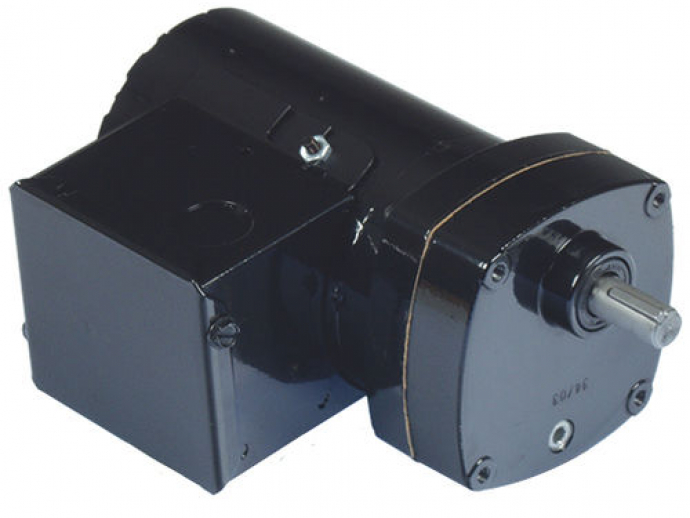

UP TO 100 IN-LBS CONTINUOUS

The 100 Series offers a wide speed range and many voltage options in an ultra-compact package. It yields a 1.2-320 RPM speed range and 10-100 in-lbs in torque range.

1st-stage helical steel, balance powdered metal or steel
Housing: Precision machined die cast aluminum
Lubrication: Lifetime oil bath, sealed and gasketed
Bearings: Needle output
Shafts: Hardened steel
Mounting: Face or optional footplate (any angle)

Motor
Motor Type: Permanent split capacitor and 3 phase
Rotation: Reversible
Insulation: Class B minimum
Finish: Gloss black powder coat 175 3-phase unpainted
Enclosure: Open 1/80 & 1/10 HP
TENV 1/20 HP
TEFC 1/12 HP

• Included junction box
• Included capacitor on PSC units
• Rear shaft on PSC units

• Power-off brake for PSC motors
• Footplate kit
Part number: P125-100-9998

Parameter Name	Parameter Value
Motor type	AC
Type	helical
Shaft orientation	parallel-shaft
Power (W)	10 - 50
Torque (Nm)	1 - 5 5 - 10 10 - 20
Product applications	industrial
Other characteristics	compact precision two-stage three-stage single-stage four-stage
Gear ratio (unit)	5 - 1369.3
