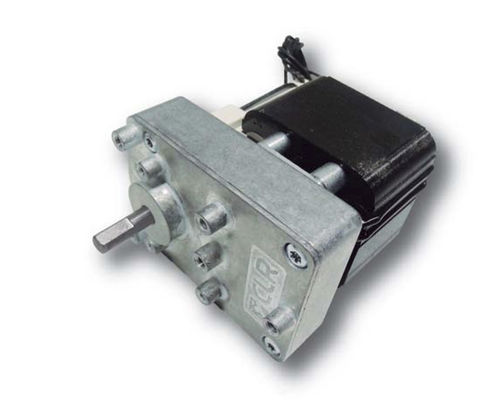

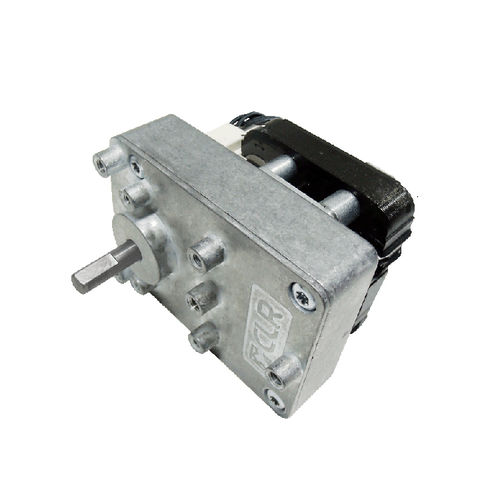

This gearbox model is defined by the use of gears combining the best of spur and helical gears so that getting an improvement between them.
Spur gear
Steel output shaft
Output shaft with ball-bearing
Max. permissible radial load, 10 mm from flange: 130 N
Max. permissible axial load: 80 N
Gear material: heat treated steel
Zamak housing
Max. operating torque 4 N·m
Speed range: 1.5 - 175 rpm

Parameter Name	Parameter Value
Motor type	AC
Type	helical
Shaft orientation	parallel-shaft
Voltage (V)	220 - 220
Torque (Nm)	1 - 5
Product applications	industrial
