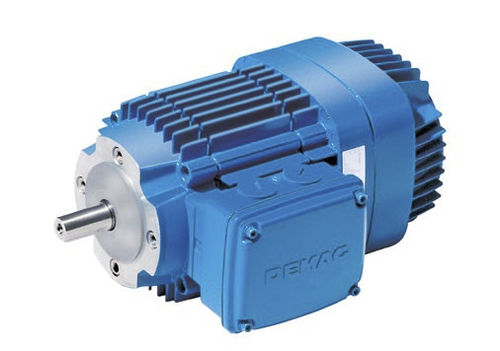

AC brake motor KB series

AC brake motor KB series

AC brake motor KB series

About


Simple, robust and reliable – these are the key characteristics of our KB conical-rotor brake motors. Their unique brake operating principle eliminates the need for separate control or additional switching elements. This is due to the mechanical connection between the brake and rotor. The result:

particularly high braking performance
approval for operation with extremely high switching frequencies
two-speed pole-changing motors
drives for starting-and-stopping applications and for direct line-fed travel motions
resistance to temporary overload

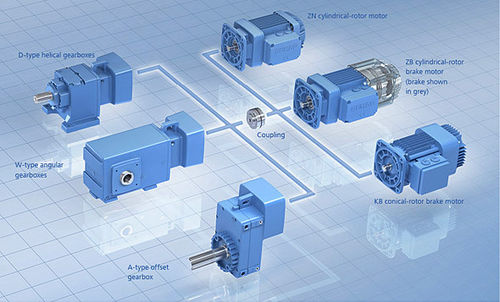

KB motors can be connected to gearboxes via a coupling.



PARAMETERS

Parameter Name Parameter Value
AC/DC
AC
Type
synchronous
Protection class
rugged
Number of poles
  • 2-pole
  • 4-pole
  • 6-pole
Other characteristics
performance
Power (W)
  • 40 - 40
  • 0 - 0
Torque (Nm)
1.4 - 610
