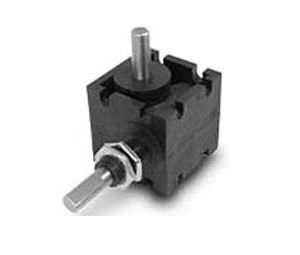

1:1 and 2:1 Ratios
Nylon or Aluminum Housing
Standard or Panel Mount
Single Input - Single Output
Single Input - Dual Output
Left and Right Hand Output Shafts
Clockwise & Counter Clockwise Rotation
OEM & Quantity Discounts
Engineering Support
Torque Rating Chart for 1:1 and 2:1
Design Features
Size: 1.25" high x 1.25" wide x 1.25" deep, not including shaft length
Gears: Hardened steel helical gears
Lubrication: Permanent
Input and output steel shafts: 1/4 " OD (Stainless available - Consult Factory)
Bearings: 200 Series (Nylon) / 300 Series (Brass)
Weight: 3 ounces (Nylon), 6 ounces (Aluminum)
RPM: Rated at 1800 RPM maximum
Horsepower: Rated for 1/8 HP continuous duty
Customized options: Available subject to design review and approva

Parameter Name	Parameter Value
Configuration	90°
Material	steel
