EvoGear – The all-rounder amongst servo right-angle gearboxes

EvoGear confidently combines all the advantages of a high-performance gearbox and is aimed at all those who set value on a high ratio variety, a shapely and easy-to-clean design. As the name already suggests, the EvoGear gearbox is a further development – but also a small r(EVO)lution, because here, all the knowledge, design demands
and requirements of the recent years have been invested in a cost-reduced and multifunctional product.

Advantages:
4 configurations - including planetary gear at the output
17 transmission ratios
The compact and stable design ensures maximum performance with small dimensions and low weight
Due to the lifetime lubrication, the gearboxes are practically maintenance-free under normal operating conditions
Energy-saving due to high efficiency of up to 96%
Precise due to low backlash of <5 arcmin
Variable motor attachment via lantern and coupling

Configuration L
Solid shaft version

Configuration LSV
Hollow shaft version

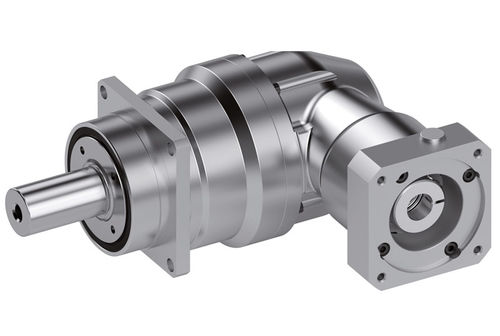

Configuration PLS
Solid shaft version with planetary output

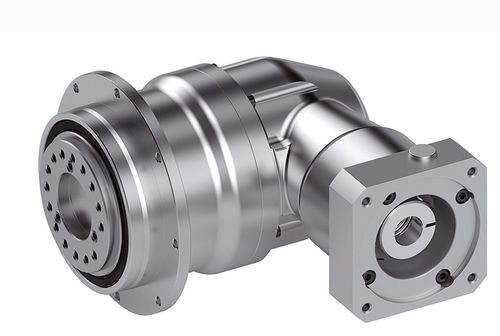

Configuration PLT
Solid shaft version with planetary stage and robot flange

Parameter Name	Parameter Value
Configuration	90°
Material	stainless steel
