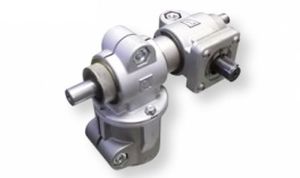

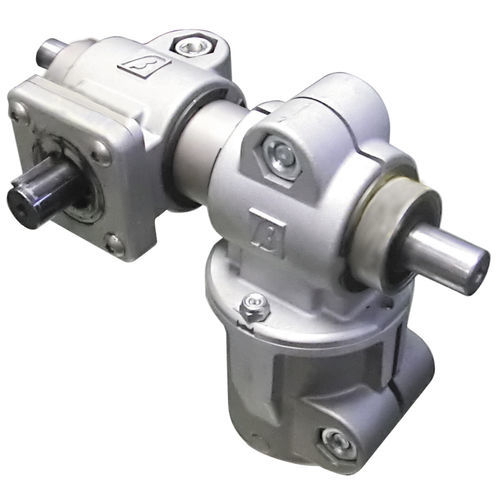

Use: applicable to 2 or more column positioners, connected with a 90° angle, when you want to synchronise their movements with each other.

State of supply aluminium clamps, steel shafts and gears, anodised aluminium spacer, galvanised steel nuts and bolts, 5x20 elastic pin in burnished steel.

Characteristics: possibility of connecting the positioners at different heights, with an adjustment angle up to ±90°.

Operation: STEP-BY-STEP (NO continuous operation).

Max. 120 rpm; max time: 1 min; on/off ratio=1/10 (max 10%).

Maintenance: not required, lubricated for life.

Standard pack: 1 piece.

Parameter Name	Parameter Value
Configuration	90° keyed shaft
Material	aluminum
