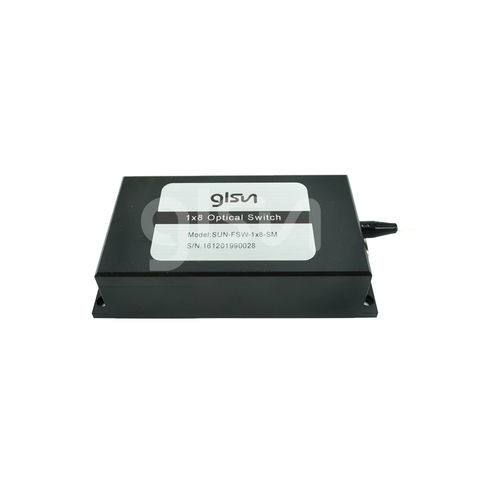

1xN Rotary Optical switch is a kind of functional component, with the ability of switching optical route. In optical fiber transmission system, this multichannel optical switch is used for multi-channel fiber monitoring, multi light source/ detector selection, and optical fiber path protection etc. Besides, this mulitchannel optical switch is also used in optical fiber test system for optical fiber and its component test, outdoor cable test and multi-spot optical sensors monitoring system.

features

·More Than 128 Channels

·Low Loss and High Reliability

·Parallel Interface (TTL)

·Modularized Design

·Epoxy-free on Optical Path

Applications

·Testing of Fiber, Optical Component

Fiber Configurations：1≤N≤128

Dimension(N≤16 )：150×80×32mm

Dimension(17≤N≤32)：150×120×32mm

Dimension(17≤N≤64)：150×80×70mm

Dimension(65≤N≤128)：150×150×70mm

Parameter Name	Parameter Value
Number of ports	8 ports
Mounting	for networks outdoor rotating
