Conformity to Community Directives: 2014/35/UE 2006/42/CE
Conformity to Standards: EN 60204-1 EN 60947-1 EN 60947-5-1 EN 60529 ISO 13850.
Storage ambient temperature: -40°C/+70°C
Operational ambient temperature: -25°C/+70°C
Protection degree: min. IP 43 - max. IP 65 depending on the joystick
Insulation category: Class II
Cable entry: rubber cable sleeve (Ø 14÷26 mm)
Operating positions: any position
Markings and homologations: CE EAC

Description

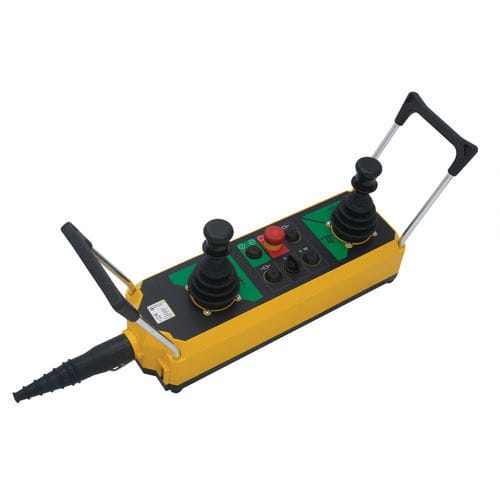

Sturdy and reliable joystick station, suitable for industrial environments and harsh conditions.
Materials, technical solutions and sizing of critical components are studied to guarantee mechanical resistance and long life.
Features
- Designed for Hercules joysticks.
- Carry-on straps and aluminium handles provide for greater ease of use.
- The emergency stop mushroom pushbutton complies with standard ISO 13850 and is positioned in the middle for intuitive operation in case of danger.
- Mechanical life of switches: 1 million operations.
- IP protection degree: Hercules-PK is classified min. IP43 – max. IP65, depending on the joystick.
- Extreme temperature resistance: -25°C to +70°C.
- All materials and components used are wear resistant and guarantee protection of the unit against water and dust.
Options
- Wide range of actuators: pushbuttons, selector switches and key-selector switches, pilot lights.
- Single switches with NO or NC contacts and double switches with NO contacts, one or two speeds, with electrical interlock to prevent simultaneous operation of opposite functions.
- Available with customized labels and enclosures with different size holes.
Certifications

Parameter Name	Parameter Value
Number of buttons	8-button
Protection class	IP65, IP43
Other characteristics	emergency stop industrial
