7" display module MST0700-06N

7" display module MST0700-06N

7" display module MST0700-06N

About

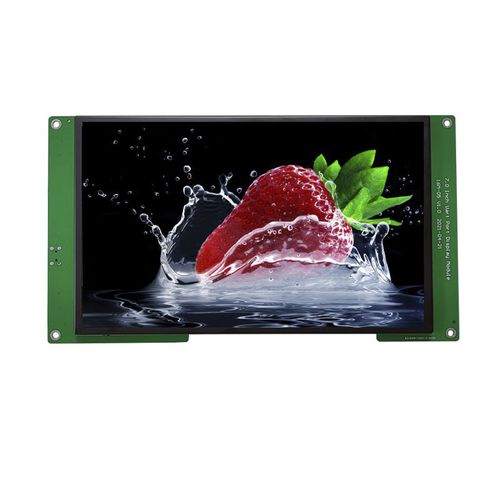

7inch 1024*600 RS232 UART IPS TFT Display

Part NO.: MST0700-06N

Resolution:1024*600

Interface:UART/TTL

IC or Equivalent:ST7789V

Outline Dimension:194.2*107.84*12.2MM

Viewing Area:154.08*85.92MM

Brightness:280cd/M2

Viewing Angle: All

No suitable display founded yet ? pls email us details and we will customize perfect one based on your requirements.

UART display is an LCD screen that uses UART serial port for communication. It is a smart and easy-to-use TFT LCD, which can quickly create the required images and actions.The user sends instructions to the serial LCD screen through the single-chip microcomputer, and the serial port screen will automatically complete all operations of drawing on the LCD. Due to the simple operation, even people who do not know any programming can easily develop the human-computer interaction interface they want.It allows users to control high performance TFT displays from low-end systems.

There are 4 main advantages of UART TFT Display:

All-In-One System – Behind the TFT panel, we designed the control board with a microcontroller and external flash, which can directly drive TFT, backlight, and the touch panel.
Easy-To-Upgrade – The firmware can be upgraded online using a dongle to upload the latest version.
Less Coding Process – Customers can easily handle programming and testing without complicated coding procedures.
Fewer I/O ports – Customers can directly drive the TFT via the UART interface, and a compatible USB adaptor is also provided.



PARAMETERS

Parameter Name Parameter Value
Type
  • TFT
  • IPS
Format
1024 x 600
Applications
  • industrial
  • control
  • instrumentation
  • for control panels
  • for medical equipment
  • information
  • remote control
  • safety
  • power
  • for gas meters
Other characteristics
  • electronic
  • UART
  • RS-232
  • interface
  • smart
Length (mm)
194.2 - 194.2
Width (mm)
107.84 - 107.84
Height
12.2 mm (0.4803 in)
