ICPE2600 Series

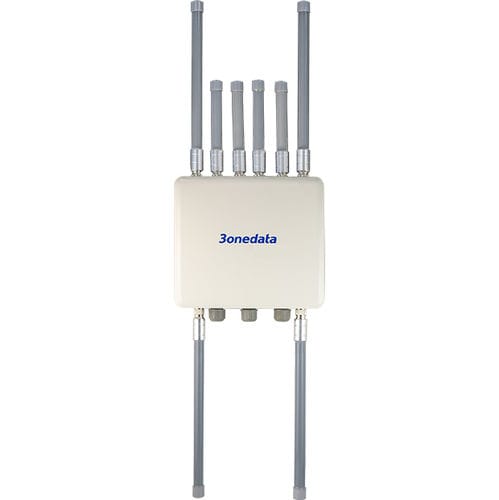

Wall Mounting or Pole Mounting Industrial Outdoor 5G Wireless Router
- Support 1 Gigabit PoE WAN, 1 Gigabit LAN, 2 2.4G antenna interfaces, 2 5.8G antenna interfaces and 4 5G Sub- 6G antenna interfaces, which can meet the high bandwidth requirement of industry application.
- Support 5G NR cellular wireless network, compatible with 3G/4G LTE all networks
- Support 2.4GHz and 5.8GHz dual bands
- Support 12~48VDC power supply input , and WAN port supports 48VDC PoE power supply input
- Support -40~75℃ wide operating temperature range
Overview
Network management supports multiple software functions, like 3G/4G/5G Cellular WAN, Ethernet WAN, ICMP Link Test, Link Backup, Dynamic Domain Name, Routing Table Setting, WLAN Setting, Port Forwarding, Port Redirection, DMZ Settings, UPnP Setting, VRRP, RIP, OSPF, Static DHCP, QoS etc.
It also supports firewall functions, such as IP Filtering, MAC Filtering, URL Filtering and Keyword Filtering and VPN tunneling functions including GRE, IPSec, PPTP, L2TP.
It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.
RESET button can realize device reboot and one-key factory default restoration.
All components are industrial grade, and the protection grade is IP68, which can adapt to the harsh outdoor environment.
It can be widely used in rail transit, security, smart city, integrated pipe gallery, production automation, smart lamp pole and other industries.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
|
| Network |
|
| Mounting |
|
| Other characteristics |
|
| Applications |
