About

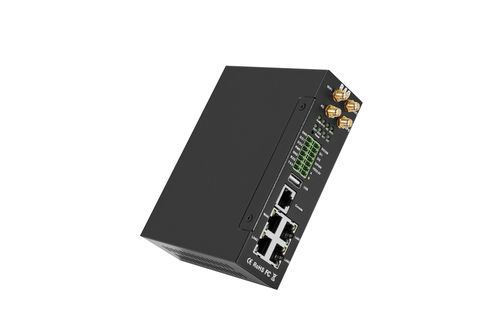

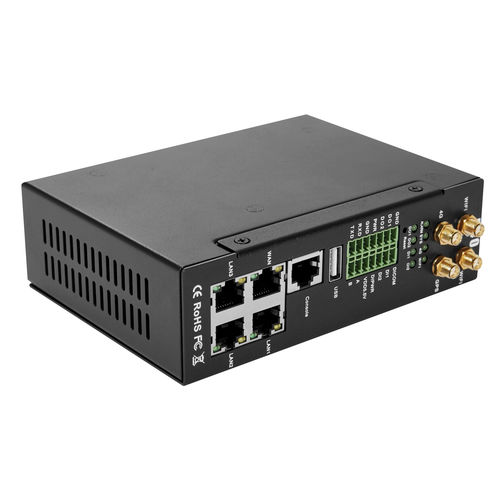

4G LTE Cellular VPN Industrial Router (Dual sim,3LAN,1WAN,1 RS485,1RS232,4AI,2DI,2DO,GPS,POE optional)
Modbus RTU/TCP/MQTT SSL protocol,can connect to AWS IOT,microsoft azure IOT cloud.
Advantages:
1.Dual SIM card(Failover mode)
2.OpenVPN
3.Supports Mainstream cloud platform protocols(MQTT SSL, AWS IOT，Azure, Ali Cloud)
4.Various I/O ports(4AI,2DI and 2DO )
5.Quick access to cloud platform with RS485 master and support Modbus to convert MQTT
6.Automatically monitor status of LAN port (disconnect alarm) realize real-time monitoring of the network.
Dual SIM card(Failover mode)
7.OpenVPN VPN security tunneling IPsec, Open VPN PPTP, L2TP which rescue data security
8.Supports Mainstream cloud platform(MQTT SSL, AWS IOT，Azure, Ali Cloud and Huawei Cloud)
9.Various I/O ports(4AI,2DI and 2DO ) GPS /POE optional,AI value can set multiple threshold and alarm value
10.Quick access to cloud platform with RS485 master and support Modbus to convert MQTT.
Automatically monitor the status of LAN port (disconnect alarm) to realize real-time monitoring of the network.
11.Data backup and resend.If network disconnect ,can send data of offline time to cloud when network recovery(only MQTT)
12.Can integrate customer’s SDK;
13.Communication protocol:Modbus slave/master/MQTT/MQTT SSL;
14.Remote upgrade and web configuration;
15.Serial port TCP/UDP transparent data transmission or AT command transmission;
16.SMS control route online and offline, short-term notification of routing status;
17.Various network protocols:PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP,
HTTPs, DNS, ARP, NTP, SMTP, Telnet, VLAN,SSH2, DDNS,SNMP
18. WIFI AP /client mode,max speed 300Mbps;
19.TCP client/ server
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
|
| Network |
|
| Mounting |
|
| Number of ports |
5 ports
|
| Other characteristics |
|
| Applications |
|
