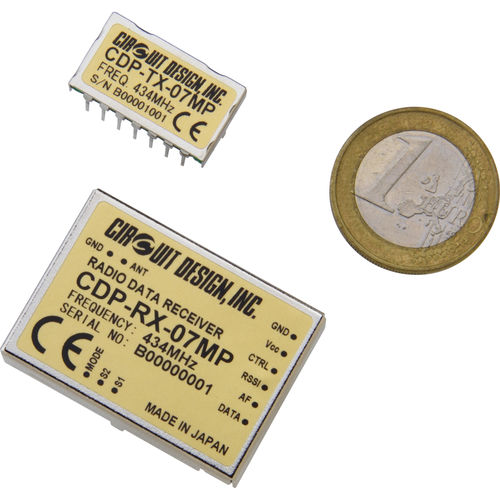

CDP-TX-07M(P) and CDP-RX-07M(P) are low power narrow band FSK transmitter and receiver modules, designed for industrial applications operating in 434 MHz. The modules contain most of the components necessary for radio communication in compact cases. The operating RF channel can be selected from 4 preset frequency channels. The receiver is double-superheterodyne and equipped with a SAW filter, ensuring high sensitivity and very good selectivity for stable and long range communication.

The CDP-TX-07M, CDP-RX-07M is compatible with CDP-TX-05M-R and CDP-RX-05M-R

CDP-TX-07MP, CDP-RX-07MP has connection pins S1 and S2 allowing frequency setting to be performed externally.

Features
- 10 mW RF output
- Wide operating temperature (-20 to + 65 degree C)
- 4 preset channels* containing 4 frequencies in the 434 MHz band
- PLL controlled VCO, data rate 100 to 4,800 bps FSK

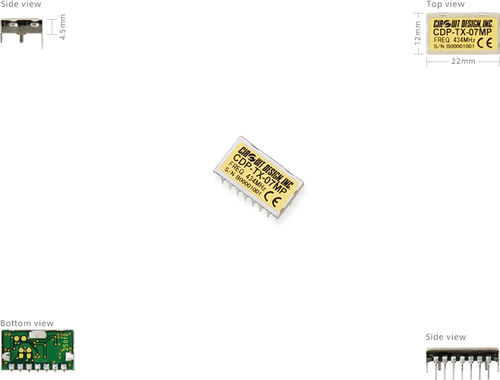

- Compact size transmitter 22 x 12 x 4.5 mm

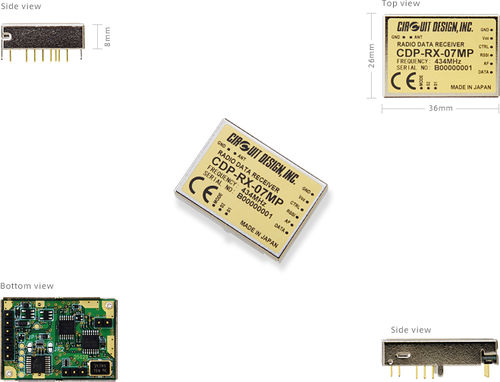

- Receiver size 36 X 26 X 8 mm
- Receiver category 1
- RED compliant (EN 300 220)
- Radio Equipment Regulations 2017 (UK)

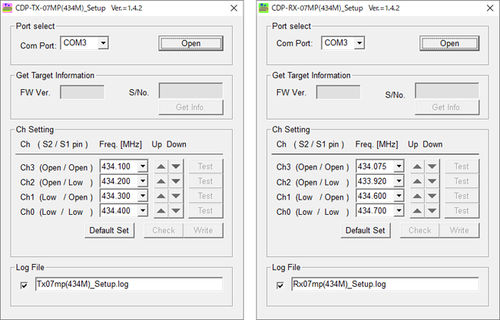

* For the CDP-TX-07MP and CDP-RX-07MP, the user can reprogram each channel with a frequency selected from 67 frequencies in the 434 MHz band using a dedicated setting program.

Applications
- Remote control systems
- Security and alarm systems
- Telemetry and monitoring systems
- Tracking systems

Parameter Name	Parameter Value
Network	FSK
Applications	telemetry remote control for surveying tracking
Number of channels	4-channel
Other characteristics	compact low-power long-range narrow-band 434 MHz
