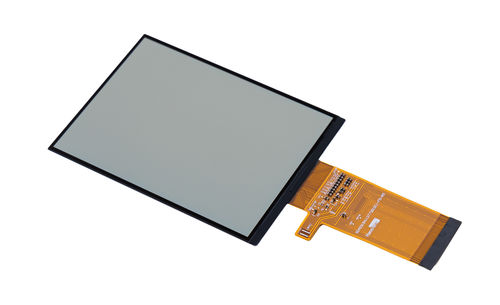

4.2” LCM ECO-Friendly Paper Display Reflective with Front Light
B/W/R Color, Resolution 300 x 400, Reflective TFT-LCD Module with front light system unit

The HSD042GPW1-90000E-MX is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device.

It is a reflective-type display that operates in total reflection mode and consists of a TFT LCD panel, driving circuit, and front light system.

With a 4.2-inch diagonal measurement, the active display area features a resolution of 300 horizontal by 400 vertical pixels.

4.2” Reflective TFT-LCD Module
Front Light system unit
HannStar Argentum Birefringence Display Technology
Sunlight Readable, Anti-Glare
Display Color B/W/R
Resolution 300 x 400
Wide temperature range -20°C ~ +70°C
Interface: SPI
Fast response time: 5 msec
Eco-friendly
Ultra-Low power consumption

Parameter Name	Parameter Value
Type	color LCD/TFT
Format	300 x 400
Applications	industrial
Other characteristics	SPI sunlight-readable
Width (mm)	95.1 - 95.1
Height	67.6 mm (2.6614 in)
