About
PID temperature controller is a control loop feedback mechanism widely used in industrial control systems and a variety of other applications requiring continuously modulated control.
- Economical,wide application,precise control
- High accuracy:0.25% FS ±0.1°C
- APID, AMPT, PID, ON-OFF selectable
with auto-tuning
- Dual 4-digit display of process & set point
- LED bar graph selectable for display
- Input Types:Thermocouple,RTDs, Linear currect/voltage
- Output type: Relay, SSR Drive, Triac, linear current
- Wide variety of alarm modes selectable
- heat/cool dual output supported
- RS485/232 communication supported with protocol AIBUS/MODBUS
- Fit worldwide power supplies:110~240VAC, 24VDC, 50/60HZ,
- Elctromagnetic compatibility: ±4KV/5KHz according to IEC61000-4-4; 4KV according to IEC61000-4-5.
-Power consumption: ≤5W
-Operating Ambient: Temperature 0~60℃; Humidity ≤ 90%RH

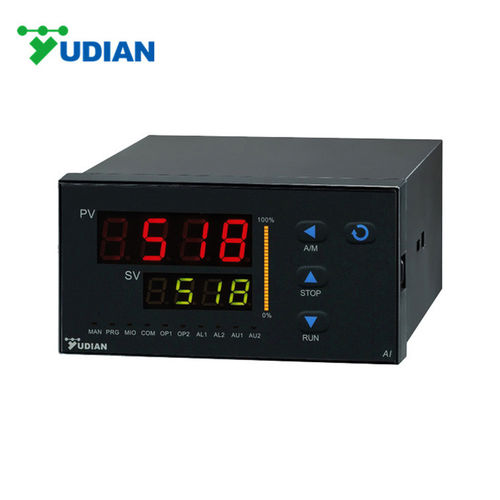

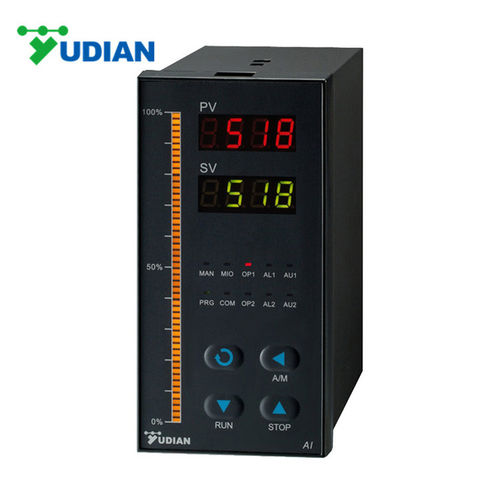

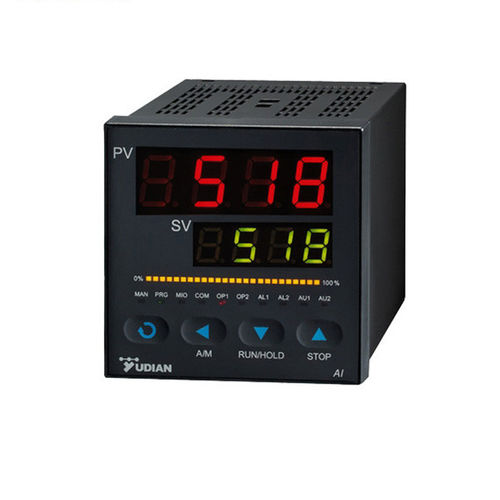

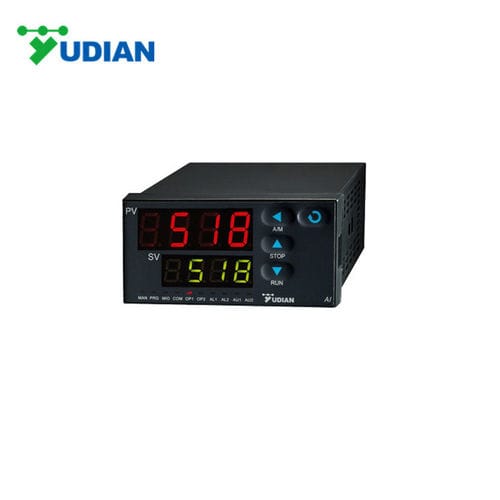

-Front Panel Dimension: 96*96mm, 160*80mm, 80*160mm, 48*96mm, 96*48mm, 48*48mm, 72*72mm
- CE,UL,RoHS,ISO9001 approved/certificated
- 1 years' warranty
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Number of lines/digits |
4-digit, 2-line, dual-line
|
| Mounting |
|
