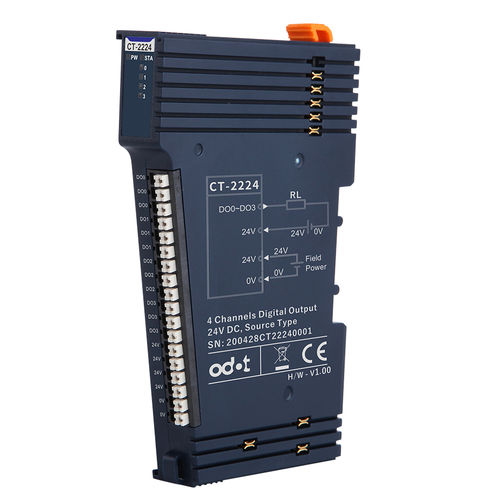

CT-2224: 4 channel digital output/24VDC/ Source type

◆the module supports 4-channel digital output, the output voltage is 24VDC and the output high level is valid.

◆the max output current of DO single channel is 3.3 A.

◆the module could drive field equipment (relay, solenoid valve, etc.)

◆the module internal bus and field output are isolated by optocoupler

◆the module carries with 4 digital output channel LED indicator

◆the module has the functions of thermal shutdown and overcurrent protection

◆the module supports short circuit protection and overload protection

Power Consumption: - Max.30mA@5.0Vdc
Isolation: I/O to internal bus: opto-couple isolation (3KVrms)
Field Power: Nominal:24Vdc, Range: 12~30Vdc
Wiring: I/O wiring:Max.1.5mm2(AWG 16)
Mounting Type: 35mm DIN-Rail
Size: - 115*14*75mm
Weight: 65g

Output parameters
Channel Number: 4 Channels
LED Indicator: 4 Channels output LED Indicator
Rated Current: Typical value：2.2A
Leak Current: ax. value：10uA
Output Impedance: <90mΩ
Output Delay: OFF to ON:Max.5us
ON to OFF: Max.200us
Protection Function: Over temperature turn-off: typical value 150℃
Overcurrent protection: typical value 12A

Parameter Name	Parameter Value
Signal type	digital
Bus	Modbus RTU, EtherNet/IP, Modbus TCP, CANopen, EtherCAT, PROFIBUS-DP, ProfiNet, CC-Link
Applications	automation
Number of inputs/outputs	4-channel 4 digital outputs
Mounting	DIN rail
