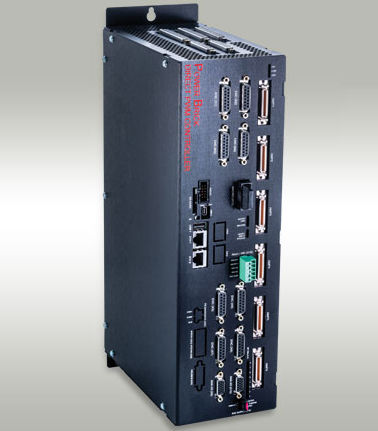

Delta Tau has developed a new generation of Power PMAC products called the Power Brick product line. The Power Brick family of products can be ordered with built-in amplifiers for both AC and DC input voltages, Power Brick AC and Power Brick LV, or it can be used purely as a machine controller, as in the case of the Power Brick

HARDWARE FEATURES

4/8 Axis with Output Options:
1) 16-Bit Dual DAC Outputs
2 12-Bit Dual Filtered PWM Outputs
Additional General Purpose 12-14v I/O:
1) 16 Digital Inputs
2 8 Digital Outputs
Modular CPU design which allows:
1) Usage of latest Power PMAC CPU
2) Supporting different CPU options:
- Different peeds
- Single/Dual ore
- Different RAM/Flash izes
- Video Output / Human Interface Device Connectivity
Transparent programming in Power PMAC Integrated Development Environment (IDE)
Low Cost MACRO (Real-time fieldbus based upon fiber Ethernet) Expandability
Built-in Analog Inputs / Outputs even on 8-Axis units
Secondary feedback support on all channels (Serial or Quadrature)
Multiple built-in Serial Encoder Protocols
EtherCAT Controller Option with support for:
1) COE
-Synchronous Cyclic Position
-Synchronous Cyclic Velocity
- Synchronous Cyclic Torque
2) EOE
3) FOE

Parameter Name	Parameter Value
Number of axes	4-axis 8-axis
Motor type	DC synchronous AC
Signal type	Ethernet digital EtherCAT for fieldbus
Technology	integrated
