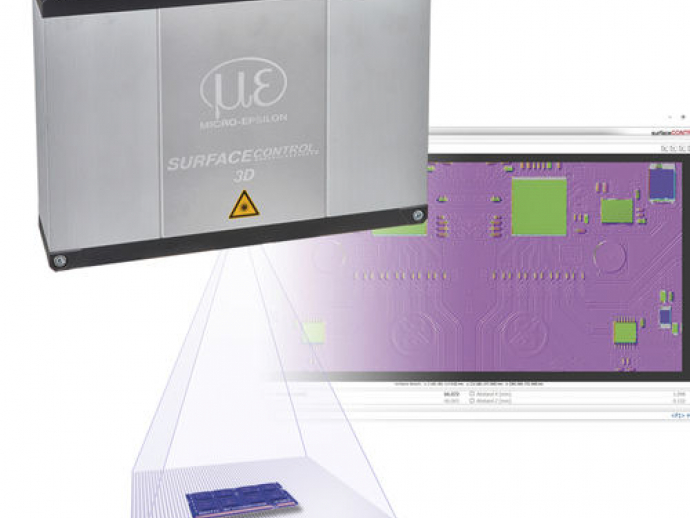

The high-performance surfaceCONTROL 3D 3200 snapshot sensor is ideally suited for use in industrial applications. It performs automated inline 3D measurements for geometry, shape and surface inspection on diffuse reflecting surfaces. The sensor is characterized by its compact design and high measurement accuracy combined with high data processing speed. With a high Z-axis repeatability of up to 0.6 µm, the sensor is ideal for precise 3D measurement and inspection tasks. Two different measuring ranges cover different measuring fields.

In addition to the fast data output, the surfaceCONTROL 3D 3200 also has an IO interface. EtherNet/IP, PROFINET and EtherCAT are available by using the 2D/3D Gateway II. 3D GigE Vision compatibility also allows easy integration into third-party image processing software. The comprehensive SDK for customer software integration rounds off the software package.

Application examples:
3D geometry inspection and form detection
Inspection of electronic components
Automation, production and process monitoring and quality control
Non-contact measurement of diffuse reflecting surfaces in the Stop&Go process
Form, position and surface inspections

Parameter Name	Parameter Value
Type	3D
Applications	for object detection for pattern detection for optical detection for defect detection for presence detection robotic
Other characteristics	compact stand-alone all-around
Resolution	Min.: 1.5 µmMax.: 3 µm
