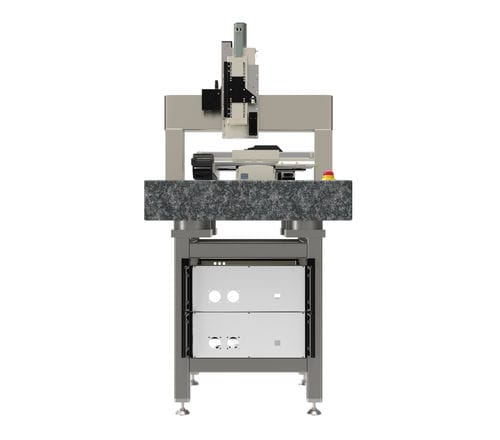

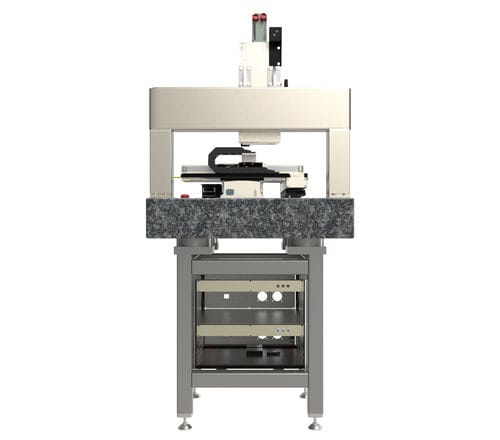

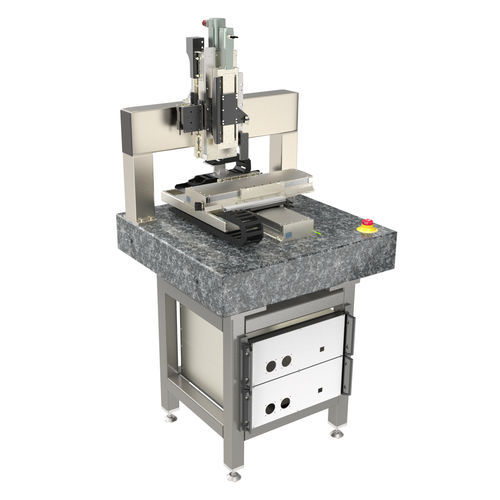

3D printer positioning system 782300:176.26.2

3D printer positioning system 782300:176.26.2

3D printer positioning system 782300:176.26.2

About


This XYZ positioning system is suitable for modular set-up and expansion of automated production lines in the pharmaceutical industry.

The customer-specific print head on Z-axis moves extremely fast with up to 1000 mm/s over the carriers in the range of 300 x 200 mm. It is flexibly adaptable to different manufacturing technologies such as layer build-up, printing of microparticles or manufacturing by jets and much more. With sub-micron precision, you can print the spatial structure of a drug with high accuracy for immediate or delayed drug formulation and produce other customized combination preparations.

Ideal for flexible and automated 24/7 production
• Ideal for 3D printing of extended-release tablets, polypills and combination products
• Two Z-axes for integration of two processes simultaneously for a second print head or for sensors for quality control
• High throughput due travels of 300 x 200 x 100 mm, expandable to 600 x 600 x 100 mm
• Extremely high repeatability up to 0.4 µm for 3D printing
• Clean room compatible with long lifetime and long maintenance intervals
• Flexible set-up and expansion of production lines due to easy integration into cycle lines and a modular baying of multiple gantries

Optionally expandable:

• Expansion with up to five powerful, secondary Z-axes for the integration of additional print heads, cameras or sensors
• Inline inspection for quality assurance with additional sensors and cameras via the aluminum probehind the Z axis
• Adaptation of the travels for the production space
• Safety cabinet



PARAMETERS

Parameter Name Parameter Value
Number of axes
XYZ
Features
linear, portal
Applications
for 3D printers
Other characteristics
  • ball screw
  • linear motor-driven
  • servo-driven
Stroke (mm)
100 - 200
