Universally usable time-of-flight camera with high precision for cost-efficient 3D imaging in real time

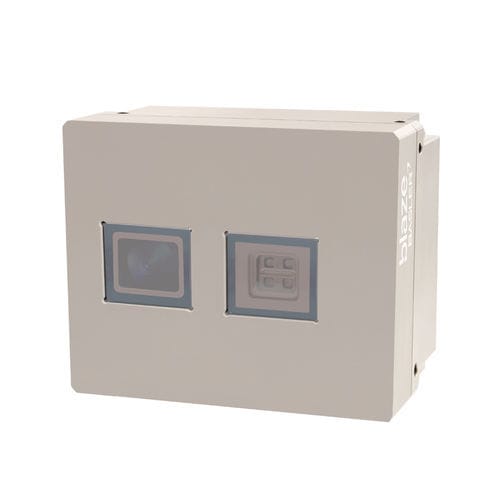

The Basler blaze industrial 3D camera operates on the pulsed Time-of-Flight principle. Its laser diodes (VCSEL) work in the NIR range (940 nm), generating 2D and 3D data in one shot with a multipart image, incorporating range, intensity and confidence maps.

The Basler blaze offers high resolution (VGA), precision via Sony’s innovative DepthSense™ sensor technology, plus powerful features at an attractive price, making the Basler blaze unique in the market.

The highlights of the Basler blaze camera at a glance

- Outstanding 3D imaging with the latest Sony DepthSense™ IMX556PLR sensor technology
- Precise, almost millimeter-accurate optical measurement with the time-of-flight method
- Large measuring range, covering approximately two Euro pallets or a small car
- Real-time streaming of pre-processed 3D point clouds and 2D intensity images
- Daylight capability and IP67 protection for stable results under difficult conditions
- Light and contrast independent
- Easy system integration thanks to compact design and Gigabit Ethernet
- User-friendly and platform-independent programming interface with sample programs
- Reliable operation in multi-camera systems without mutual interference

Parameter Name	Parameter Value
Applications	industrial medical for robotics laboratory agriculture
Technology	3D time-of-flight
Function	monitoring detection inspection measuring machine vision
Spectrum	NIR, monochrome
Sensor	CMOS
Interface	GigE VGA
Resolution level	640 x 480
Other characteristics	high-sensitivity IP67 with real time viewing (RTV) compact
