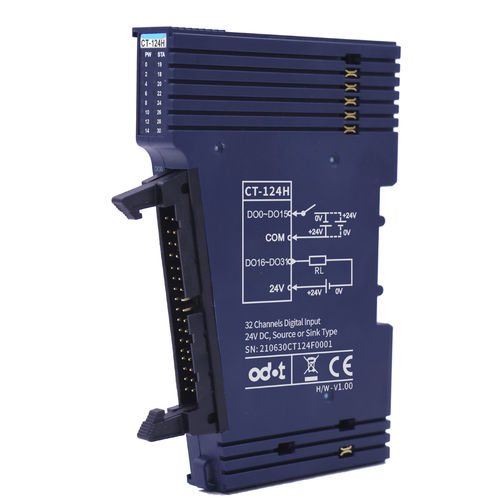

32 digital inputs input module CT-124H

32 digital inputs input module CT-124H

32 digital inputs input module CT-124H

About


CT-124H: 32 channels digital input, sink or source, 34Pin male connector, 24Vdc, counting function supported (counting frequency up to 200Hz)

◆ the module supports 32 channels digital input, it supports sink input and the input high level is valid as it could support PNP sensor; it also supports source input and the input low level is valid as it could support NPN sensor.

◆ the module could collect the digital output signal of field equipment (dry contact or active output).

◆ the module could be connected to 2-wire or 3-wire digital sensor.

◆ the internal bus of the module and field input are isolated by optocoupler.

◆ the module supports input signal holding function, holding time can be set.

◆ after adding counting submodule in ODOT configured software, the counting function is effective.

◆ each input channel of the module supports 32-bit counter with counting frequency <200Hz.

◆ the module could be set the digital signal input filter time and counter byte transmission sequence.

◆ each channel of the module could be set the counting mode and counting direction independently



PARAMETERS

Parameter Name Parameter Value
Signal type
digital
Bus
Modbus RTU, Modbus TCP, EtherNet/IP, serial, Fieldbus
Type
  • remote
  • network
Applications
  • automation
  • PLC
  • for sensors
  • centralized automation
Number of inputs/outputs
32 digital inputs
Mounting
DIN rail
Size
mini
Other characteristics
  • configurable
  • compact
  • slave
