The real-time EtherCAT technology, widely used in machines and motion control applications. Outstanding performance, flexible topology and simple configuration characterize EtherCAT, the real-time Ethernet technology, which is the expansion of IEEE 802.3 as part of IEC 61158. EtherCAT sets new standards where conventional fieldbus systems reach their limits: 1,000 distributed I/Os in 30 μs, almost unlimited network size, and optimum vertical integration thanks to Ethernet and internet technologies. With EtherCAT, the costly Ethernet star topology can be replaced with a simple line or tree structure – no expensive infrastructure components are required. All types of Ethernet devices can be integrated via a switch or switch port. Where other real-time Ethernet approaches require special master or scanner cards, EtherCAT manages with very cost effective standard Ethernet interface cards.

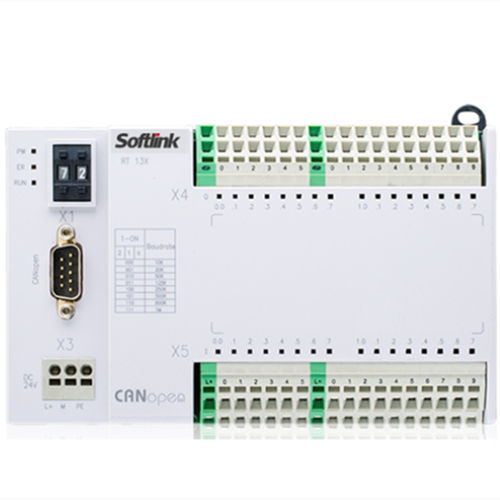

Parameter Name	Parameter Value
Signal type	digital
Bus	CANopen
Type	distributed
Applications	PLC automation
Number of inputs/outputs	32 digital inputs
Mounting	DIN rail
Other characteristics	compact rugged IP
