Low built-in measurement, long stroke. For industrial/medical use.

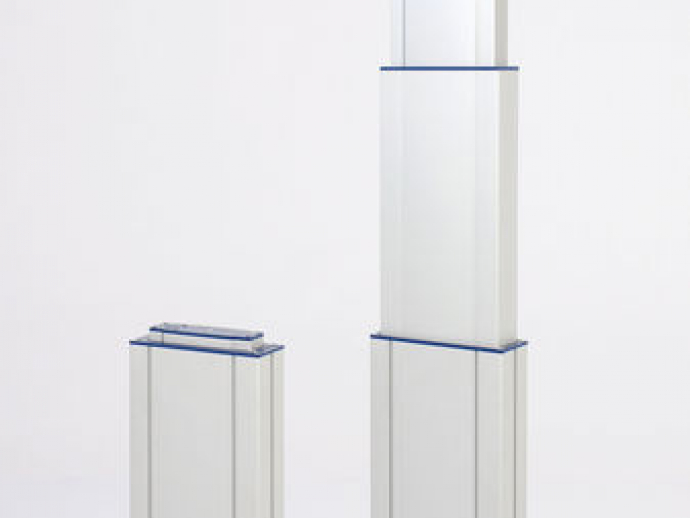

MAC4 is a completely new developed lifting column, designed to meet the requirements of aesthetics and quality in industrial workplaces. Usable in many industrial/medical applications. In the development, high stability and a reasonable price level were emphasized. MAC4 is a Low-Noise lifting column. The lifting column is designed for loads of max. 1750N and can be moved up to 47mm/s without load. The bending moment is1000Nm.

Plug & Play: You can also get MAC4 as a complete Plug & Play solution, including one or more MAC4 lifting columns, a Movetec control box 230V AC, all cables and a control panel.

Option: By Selecting a control box with Bluetooth®, MAC4 are easily controlled by iPhone® or Android®-Smartphone.

Material specifications:
• Outer profile: Anodized Aluminium
• Middle profile: Anodized Aluminium
• Inner profile: Anodized Aluminium
• Friction sliders: POM Derivate
• Top- and Bottom plate: Steel
• Lifting system drive parts: Aluminium, Steel, ABS, POM, PP

Technical data:
• Dynamic bending moment: 800 Nm
• Static bending moment: 1000 Nm
• Max. speed without load: 47mm/s (800 N)
• Installation length/Built-in measurement: 236-819mm
• Operation temperature: +5°C – +45°C
• Power supply/Voltage: 12/24V DC
• Intermittens: 10-25%
• Double Hall-sensors: Yes
• Top plate size: 173mm x 54mm
• Bottom plate size: 222mm x 79mm
• Outer profile size: 222mm x 79mm
• Inner profile size:173mm x 54mm
• Mounting track: Width top 8,1mm/inside 8,1-12mm/depth 5mm
• Control box: More options, see www.movetec.dk

Parameter Name	Parameter Value
Applications	for medical applications industrial
Electrical characteristics	low-noise 24V DC 12 VDC
Other characteristics	3-stage heavy-duty
Force (N)	1750 - 1750
Stroke (mm)	200 - 1200
