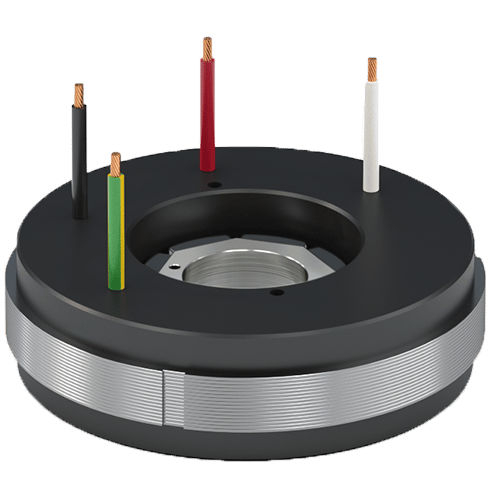

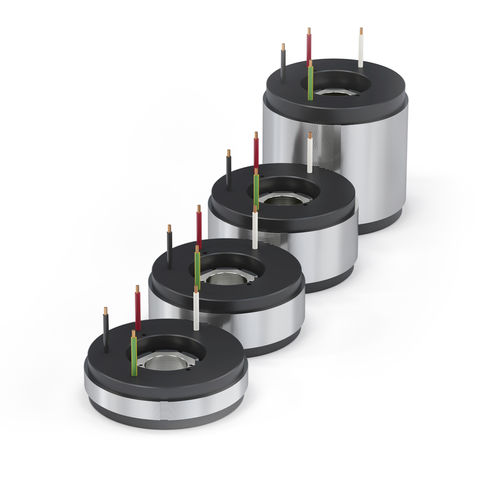

The QTR 65 is the smallest torque motor in the Tecnotion QTR range. This motor is optimized for small and low voltage applications. The 65 Series is available in four motor ‘heights’ or ‘sizes’, a 17, 25, 34 and 60 size motor.

Compact sizing and low voltage support make the 65 mm QTR motor ideal for robotics applications.

Parameter Name	Parameter Value
AC/DC	3-phase
Type	synchronous

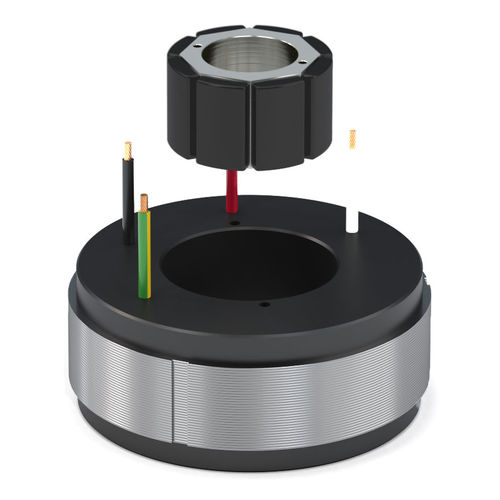

Configuration	hollow-shaft compact frameless small
Number of poles	8-pole
Applications	for robotics for the semiconductor industry
Other characteristics	direct-drive low-voltage
Power (W)	53 - 53 99 - 99 138 - 138 217 - 217
Intensity (A)	4.86 - 5.61
Torque (Nm)	0.29 - 0.29 0.66 - 0.66 1.08 - 1.08 2.31 - 2.31
Rotational speed (rpm)	1030 - 1030
Diameter (mm)	65 - 65
