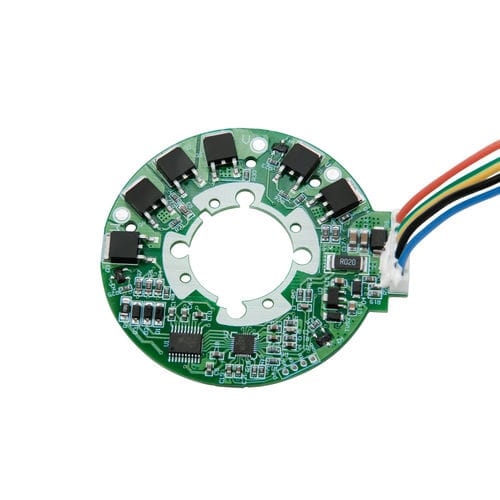

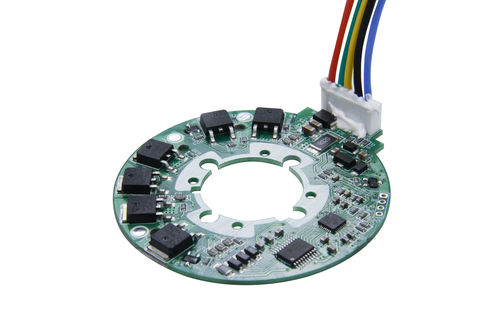

Low pressure 3 phase brushless DC motor controller for fascia gun muscle massager
Model:716PCDPTH0040
Introduction: Low pressure 3 phase brushless DC motor controller for fascia gun muscle massager. DC 12V~24V input, square wave, hall control.
Stalling power 300W (3S), with speed control.
4-pole motor, rotating speed up to 5000rpm.
Application: Muscle massager, Fascia gun
Size: Φ57*Φ21*H5
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| AC/DC |
3-phase
|
| Motor type |
BLDC
|
| Other characteristics |
|
| Applications |
positioning
|
| Input voltage |
Max.: 24 VMin.: 12 V
|
| Output voltage |
Max.: 220 VMin.: 12 V
|
| Current (A) |
0.2 - 50
|
