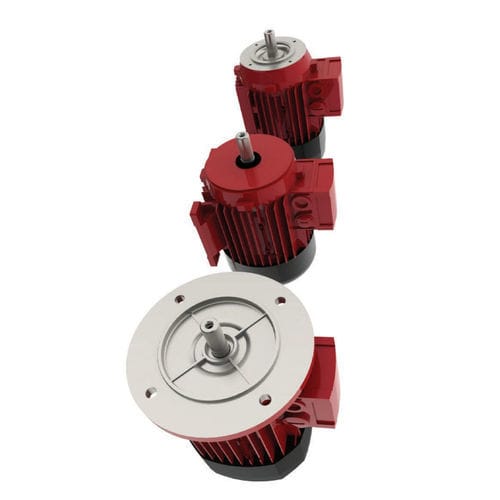

• 3 Phase, 50 Hz/60Hz
• 220-240/380-415V up to 3kW
• 380-415/660-720V 4 kW & above
• B3 Foot, B5 Flange and B14 Face Mounting
• 4 Pole (1500 rpm) and 6 Pole (1000rpm)
• IEC Frame Sizes 63 up to 200

• 3 Phase, 50 Hz/60Hz
• 220-240/380-415V up to 3kW
• 380-415/660-720V 4 kW & above
• B3 Foot, B5 Flange and B14 Face Mounting
• 4 Pole (1500 rpm) and 6 Pole (1000rpm)
• IEC Frame Sizes 63 up to 200

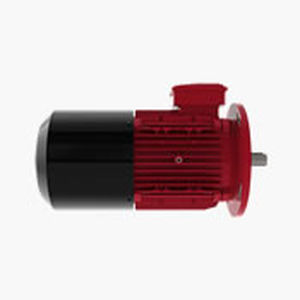

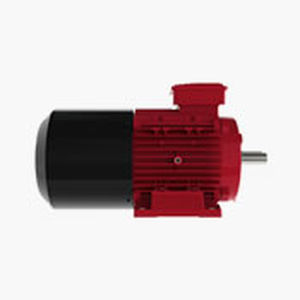

• High torque DC brake
• Standard rectifier: 230V, 50/60Hz (others on request)

The brake units are a single disc type mounted on the non-drive end-shield of the motor and can be either DC or AC types. They are spring applied electrically released units, which provide fail to safe operating characteristics such that on interruption, or failure of power supply, the brake will engage and arrest the load.

Parameter Name	Parameter Value
AC/DC	3-phase
Type	asynchronous
Protection class	IP55 IP54 IP56 IP68 ATEX
Number of poles	4-pole 6-pole 8-pole 2-pole
Applications	for industrial applications
Other characteristics	high-efficiency high-torque low-noise high-power IE3 IE2 IE4 IE1 NEMA
Power (W)	180 - 180
Intensity (A)	0.56 - 59
Torque (Nm)	2 - 26
Rotational speed (rpm)	750 - 750
