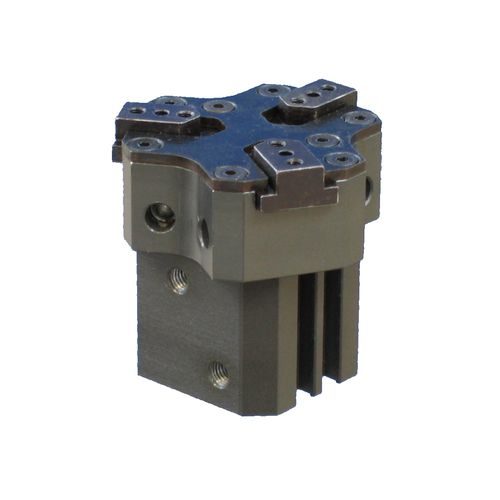

Handling pneumatic gripper with parallel clamping with 3 concentric fingers.
The guide is prismatic and mechanism is completely protected

Option :
Magnetic detection (T-grooves)

Benefits of 3-finger parallel tightening
Although most handling applications are using parallel grippers with 2 fingers, because even in the case of cylindrical parts, V-shaped jaws allow a good grip. The use of a gripper with 3 fingers is preferred in 2 case:
– refocusing of the part along 2 axes during tightening
– stability of a long cylindrical part clamped by its end
In the particular case of screwing, we have a range of 3-jaw grippers specifically dedicated to screwing: Type 2913 grippers.

Reliability and robustness of Type 24 parallel grippers
With a hard anodized body and cylinder, prismatic steel guide, fully protected mechanism, these pneumatic parallel grippers are robust and reliable.
The positions are detected by magnetic detectors (delivered separately) thanks to 2 T-grooves on the upper face of the cylinder. This groove is compatible with many detectors on the market to facilitate maintenance.

Mounting interfaces allow them to be integrated into a pneumatic handling assembly.

Parameter Name	Parameter Value
Operation	pneumatic
Type	parallel
Number of jaws	3-jaw
Application	handling
Options	double-acting self-centering 3 fingers
Grip strength (N)	60 - 200
Stroke (mm)	4.5 - 8
