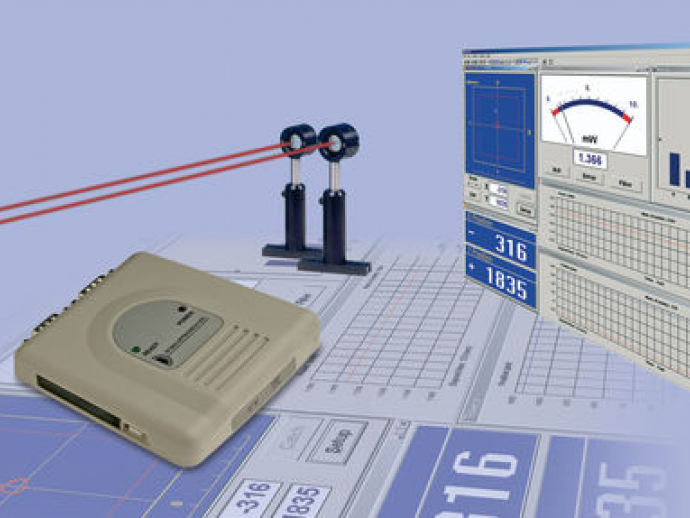

A portable, fast and accurate optical beam positioning system having a USB2.0 interface.

The system is based on a 24 bit A/D electronics box, powered via the USB2.0 port.

It offers simultaneous operation of one or two PSD's in one system.

The PSD's are Lateral Effect type or Four-Quadrant type. There is a variety of sensor head types and sizes.

The update rate is up to 150 Hz when using a 500 Hz digital filter. The spectral range is 350-1100nm.

Operation systems supported are Windows XP, Vista, 7, 8, 10 - both 32 and 64 bits.

Parameter Name	Parameter Value
Number of axes	3-axis
Features	optical
Applications	optical beam
Other characteristics	USB 2.0
