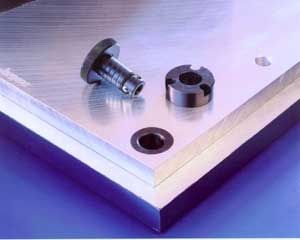

Ball Lock® Fixture Plates
Material: Cast Aluminum or FreeMax 15 Steel or equivalent
Thickness tolerance ±.005"
Steel: Parallel .001”
Cast Aluminum: Flat .005”
6061–T-651 Aluminum Plates, flat within .001” available upon request
Repeatability ±.0005"
Includes 2 pre-installed primary liners
Reduces fixture set-up and assembly time
Provided with 5/8" reamed holes for sine fixture keys
Ideal for horizontal or vertical machining centers, Bridgeport™ style machines, or multiple pallet machining centers

Parameter Name	Parameter Value
Number of axes	3-axis
Features	vertical, horizontal
Other characteristics	fixture plate
