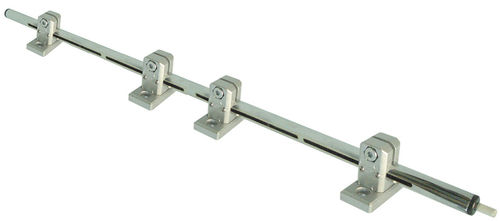

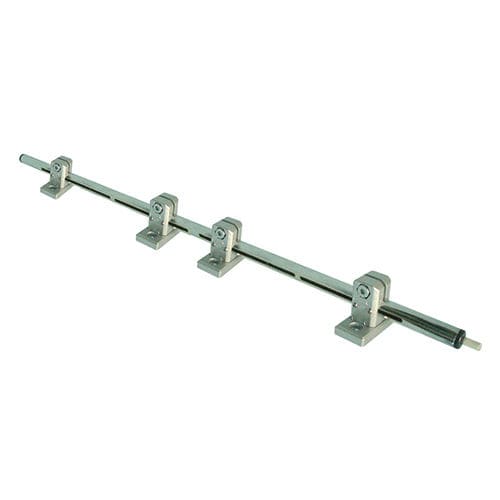

Use: positioning with opposed movement adjustable with worm screw. To reduce the setup time for format change (e.g. along 2 packaging lines with fixed distance between centres or bundling machine outfeed lines).

State of supply 1 column in nickel plated steel (electrolytic nickel-plating) or AISI304 stainless steel (see table), trapeze screws in steel and lead nut in bronze, ball bearings in steel, 2 carriages in RAL 9006 grey aluminium, galvanised steel nuts and bolts.

Characteristics: worm screw Tr10 pitch 3 (1 handwheel turn = 3 linear mm on each carriage).

Operation: STEP-BY-STEP (NO continuous operation).

Max. 120 rpm; max time: 1 (min; on/off ratio=1/10 (max 10%).

Parameter Name	Parameter Value
Number of axes	3-axis
Features	worm, opposed movement
Other characteristics	adjustable
