About
Data Logger 4G LTE-Dominant IIoT solution offering modularity and flexibility to remote data acquisition for secure and affordable infrastructure networks.
Discover Data Logger
Value perfomance

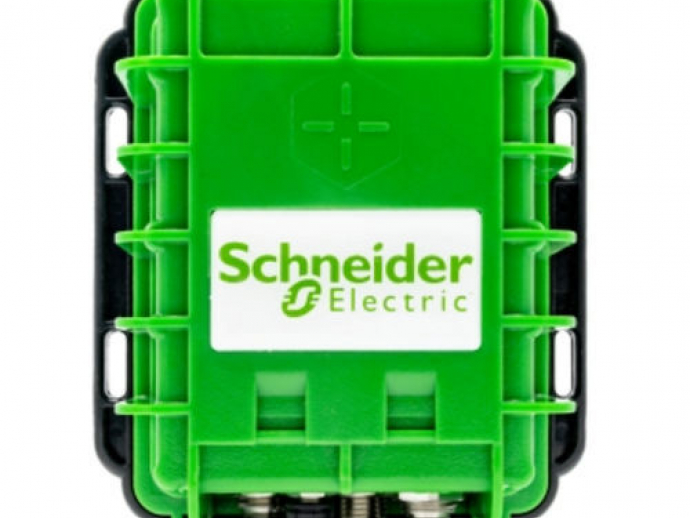

Data Logger PR is the premium line of the Data Logger variants providing the greatest mix of I/O and all the most widely utilised features of data logging. The primary source of power is internal lithium batteries, but the device also supports external power sources.
• 3 Ports supporting up to 12 sensors, supporting serial, analogue, and digital channels
• Cellular networks in 180 + countries supporting 4G/3G and 2G technology
• Dual SIM Cards
• Built-in GPS
• Includes internal and external antenna
Advanced performance
Data Logger LT – although a basic unit, the LT version supports the primary function of data logging by providing information on remote assets; but with a limited feature set. The primary source of power is internal lithium batteries, but the device also supports external power sources.
• 1 Port supporting up to 4 sensors, supporting serial, analogue, and digital channels
• Cellular networks: US CAT M 4G EU CAT M, NBIoT, 2G rest of world 4G, 2G
• Single SIM Card
• External antenna only
Premium performance
Data Logger IS - the only device designed and certified to be Intrinsically Safe for operation in hazardous locations. The device is Class 1 Div 1 Zone 0, ATEX Zone 0 approved. The primary source of power is internal lithium batteries, but the device also supports external power sources.
• 3 Ports supporting up to 12 sensors, supporting serial, analogue, and digital channels
• Cellular networks in 180+ countries supporting 4G/3G and 2G technology
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Connector type |
4G, 2G, LTE, 3G
|
| Other characteristics |
|
