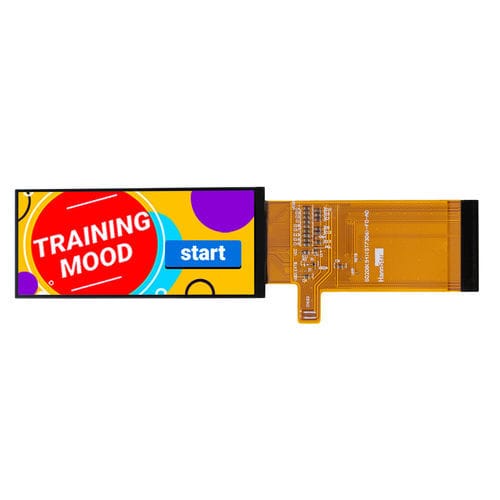

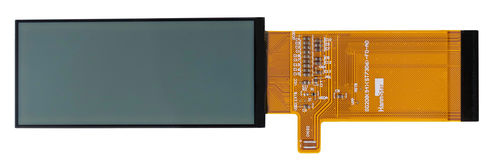

2.9" display module HSD029GPW3-90000A-MX

2.9" display module HSD029GPW3-90000A-MX

2.9" display module HSD029GPW3-90000A-MX

About


2.9” LCM ECO-Friendly Paper Display Reflective with Front Light
8 color TFT-LCD Module with front light system unit, resolution 210 x 480

The HSD029GPW3-90000A-MX is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) utilizes amorphous silicon TFT as a switching device.

It is a reflective-type display that operates in total reflection mode and consists of a TFT LCD panel, driving circuit, and front light system.

With a 2.9-inch diagonal measurement, the active display area features a resolution of 210 horizontal by 480 vertical pixels.

2.9” Reflective TFT-LCD Module
Front Light system unit
HannStar Argentum Birefringence Display Technology
Sunlight Readable, Anti-Glare
Display 8 Colors
Resolution 210 x 480
Wide temperature range -20°C ~ +70°C
Interface: SPI
Fast response time: 5 msec
Eco-friendly
Ultra-Low power consumption



PARAMETERS

Parameter Name Parameter Value
Type
  • color
  • LCD/TFT
Format
210 x 480
Applications
industrial
Other characteristics
  • SPI
  • sunlight-readable

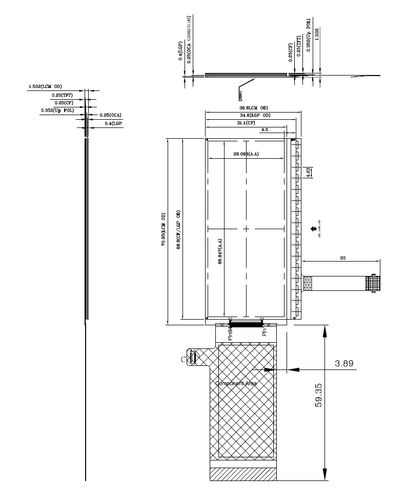

Width (mm)
70.9496 - 70.9496
Height
31.0997 mm (1.2244 in)
