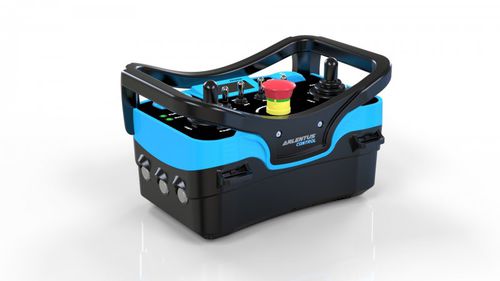

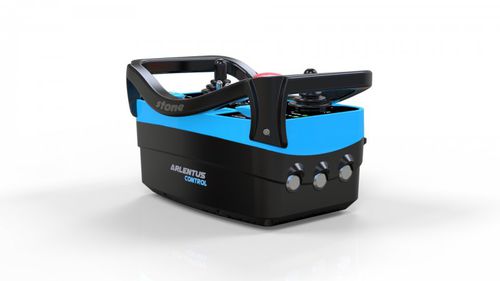

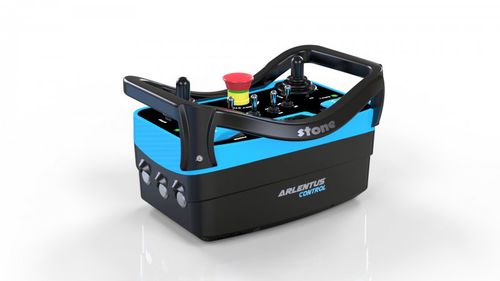

STONE. The Stone model, the most experienced member of Arlentus Control Family, is used in several sectors from locomotive to mining machinery to fire trucks to ship cranes, etc.

Operating Frequency: 433-434 MHz, 863-870 MHz, 2.4 GHz

Modulation Type: FSK, GFSK

Radio Communication: Adaptive manual frequency hopping, single or two-way (P2P)

Signal Output Power: 434 MHz - 10dBM, 868 MHz - 14dBM, 2.4 GHz - 10dBM

Encryption: 128 bit

Operating Temperature: -25 ℃ + 70 ℃

Dimension: 300 x 216 x 180 mm

Weight: 1.5-2.0 kg (battery included)

IP Protection Rating: IP65

Material Type Used: Impact resistant polyamide

Battery: 3.7V Li-Ion (3400, 6800, 10200 mAh)

Battery Warning System: Yes

Battery Usage Time: 48 Hrs

Stop Function: PL e, cat. 4

Transmitter Status Indicator: Yes

Vibration: Yes

EEPROM: Yes

Recommended Receiver Units: Flint, Graund

Antenna: Internal / External

It can be determined according to the conditions of use.

Display Type: LCD, 4x20 characters

Number of Functions: max. 5 joysticks up to 10 axis, max. 8 finger joysticks up to 8 axis

Operating Range: 150-800m

It varies to the intended use and frequency.

Parameter Name	Parameter Value
Network	2.4 GHz FSK
Specifications	control
Other characteristics	for crane
