Quin Systems Ltd is the exclusive supplier of the LinMot range in the UK.

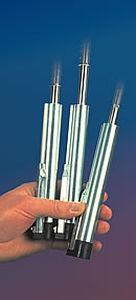

LinMot linear motors are a family of highly dynamic electro-magnetic direct drives. Acceleration rates of over 200 m/s2 make cyclic movement at several Hertz possible. The fully integrated position sensors and bearings as well as its solid construction make LinMot a novel industrial motion control element.
For the user, the linear motor consists of just two parts: the fixed stator and the moveable slider. These two parts are not connected by slip rings or by cables. In principal, since the LinMot performs the linear stroke directly without the use of mechanical gears, belts or ball screws, there is no wear or mechanical play.
LinMot linear motors are typically used in applications where fast setting, lifting and sliding movements are necessary, as found in mounting, packing, textile and handling machines . Alongside complex servo applications, LinMot drives can be used as an alternative to conventional pneumatic cylinders. Independence of compressed air and easy positionability lead, depending on the application, to lower system and operational costs.

Parameter Name	Parameter Value
Voltage (V)	200 - 200
Other characteristics	high-speed
