About

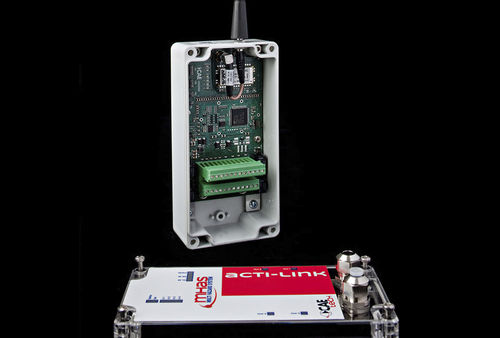

The ACTI-Link Remote Serial Interface was created to remotely control a serial interface. The typical situation in which the ACTI-Link Remote Serial Interface is used is the serial communication between a station and a sensor installed in a remote location, such as not to be able to be wired. The controller, implemented with a microcontroller board, on the one hand manages a two always-on serial interfaces (one RS232 and one RS485) and on the other the RF communication protocol.
POWER
12÷14 V
OPERATING FREQUENCY
868÷870 MHz
WEIGHT
690 g
HOUSING PROTECTION
IP65
TRANSMISSION RANGE
With optical visibility up to 5.9 Km, otherwise 3 Km
DIMENSIONS
160 X 40 X 80 mm (l x h x d)
OUTPUT POWER
23÷27 dBm (500 mW)
TEMPERATURE RANGE
-40 °C /+60 °C (-40°F/+140°F)
RECEIVER SENSITIVITY
-120 dBm
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Bus |
RS-485, RS-232, Modbus
|
| Number of ports |
2 port
|
| Other characteristics |
|
