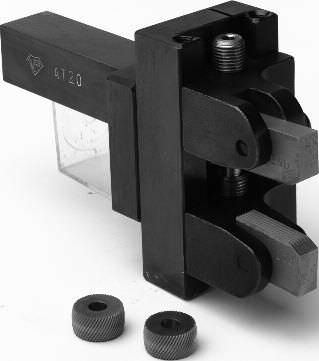

mounts into tool slot on CNC turrets easily adjustable with knurls installed
the range is 1/8"2". Opposing forces on knurls create little or no force on the
machine. Just remove the two knurl lock screws, replace with bar grippers and
use as a heavy duty bar puller. There are no gripper springs to remove when
changing bar diameters. Just loosen the lockscrew, insert allen wrench and dial
to the next size, preload approximately 1/8 rev., lock locking screw. Furnished
with 1" shank without knurls or grippers. Minimum clearance required between
turret and covers is 33/8".

Parameter Name	Parameter Value
Number of jaws	2-jaw
