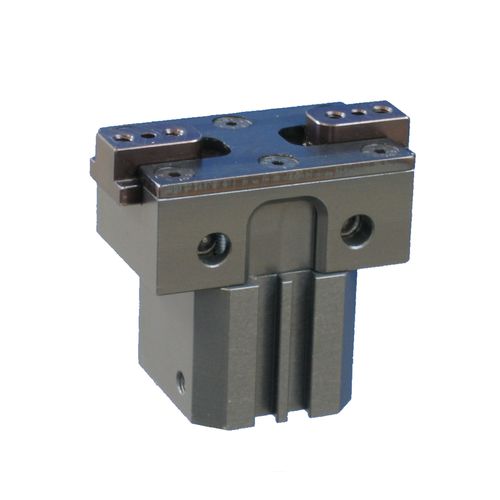

Handling pneumatic gripper with parallel clamping with 2 concentric fingers.
The guide is prismatic and mechanism is completely protected.

Option :
Magnetic detection (T-grooves)

Benefits of 2-finger parallel tightening
The clamping of these parallel grippers is the most polyvalent clamping: it allows to take pieces of slightly different sizes with the same jaws, to grab a piece in a limited space at opening, to seize the part by the inside or the outside …

For very different sizes of parts, it’s possible to grip them without changing jaws with Type 25 parallel long stroke grippers.

Reliability and robustness of Type 24 parallel grippers
With a hard anodized body and cylinder, prismatic steel guide, fully protected mechanism, these pneumatic parallel grippers are robust and reliable.
The positions are detected by magnetic detectors (delivered separately) thanks to 2 T-grooves on the upper face of the cylinder. This groove is compatible with many detectors on the market to facilitate maintenance.

Mounting interfaces allow them to be integrated into a pneumatic handling assembly.

Parameter Name	Parameter Value
Operation	pneumatic
Type	parallel
Number of jaws	2-jaw
Application	handling
Options	double-acting self-centering precision 2 fingers
Grip strength (N)	60 - 115
Stroke (mm)	4.5 - 6
