Multi-axes systems for 1, 2 or 3 dimensional positioning solutions - Cartesian Linear Axes
Features
Lexium MAX H and Lexium MAX S double portal axes (one direction)
Applications requiring precise and dynamic load handling over long distances such as material handling, optics and pick and place.
Lexium MAX H are one dimensional portal axes: consists of a driven toothed belt axis and a non driven support axis.
Lexium MAX S are one dimensional portal axes: consists of two toothed belt driven axes, synchronized over a synchronous shaft.
Highly dynamic even with heavy loads.
Lexium MAX P linear positioner (two directions)
Applications requiring dynamic handling of parts from or to conveyor belts, loading and unloading of containers, sorting and arranging of parts from containers or into containers.
Lexium MAX P is an two dimensional portal robots: Lexium MAX H providing motion in direction X, Lexium CAS 4 or a Lexium CAS 3 Cantilever axis providing motion in direction Z
The linear positioner MAXP is used above or below the working area for moving loads with long X and middle Z movements.
Lexium MAX R.2 and Lexium MAX R.3 portal robots (two or three directions)
Lexium MAX R.2 is a two dimensional portal robot:
Lexium MAX S providing motion in direction X
Lexium MAX H or a Lexium PAS B portal axis providing motion in direction Y

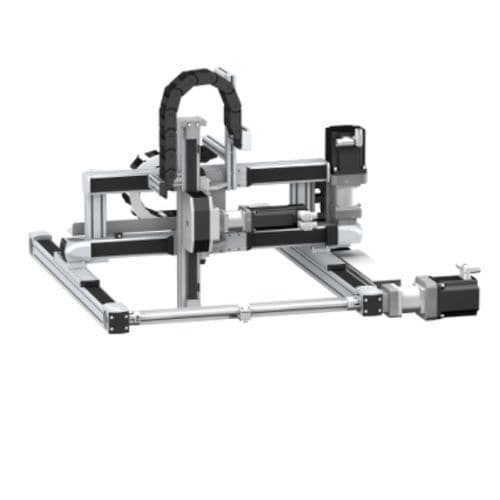

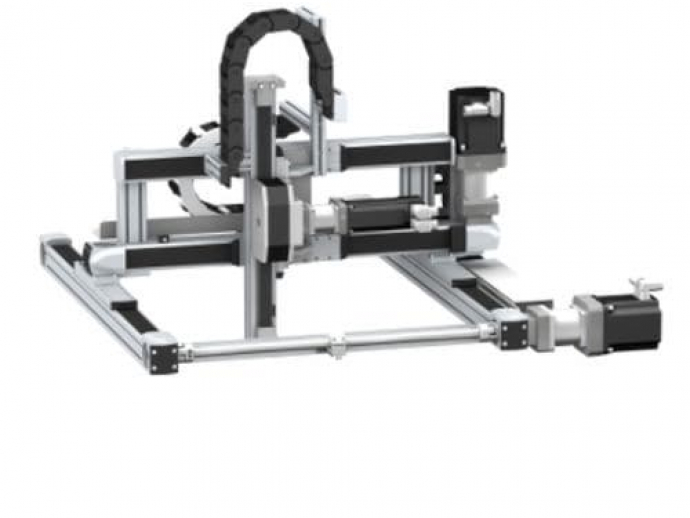

Lexium MAX R.3 is a three dimensional portal robots:
Lexium MAX S providing motion in direction X
Lexium MAX H providing motion in direction Y
Lexium CAS 4 or a Lexium CAS 3 Cantilever axis providing motion in direction Z
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Number of axes |
2-axis
|
| Features |
linear, portal
|
| Applications |
for robots
|
