2-Axis Interpolation/Standard Type Programmable Motion Controllers

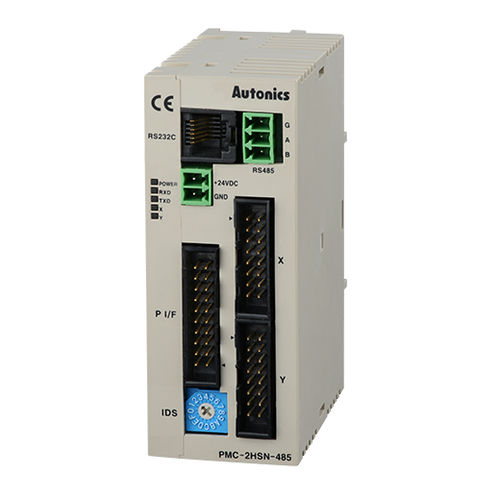

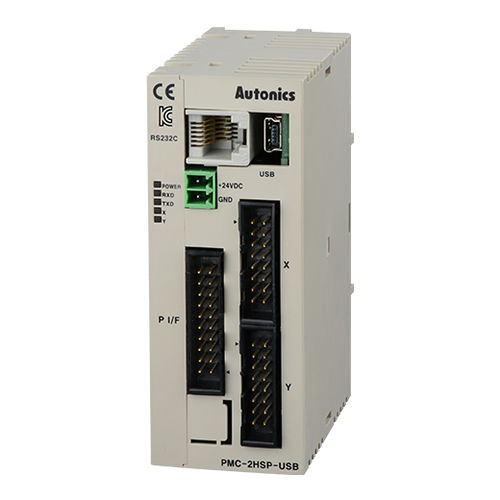

The PMC-2HSP/2HSN series programmable motion controllers feature high-speed independent 2-axis control with processing speed up to 4 Mpps. The PMC-2HSP model supports linear and circular interpolation control. 200 steps of operation programming is possible with 17 control commands (PMC-2HSN: 13 commands) and 4 operation modes are available (scan, continuous, index, program). Multiple control of up to 32-axes (16 units) is possible with RS485 communication (Modbus RTU)

Parameter Name	Parameter Value
Number of axes	2-axis
Motor type	stepper
Signal type	RS-485 Modbus RTU
Other characteristics	programmable high-speed
