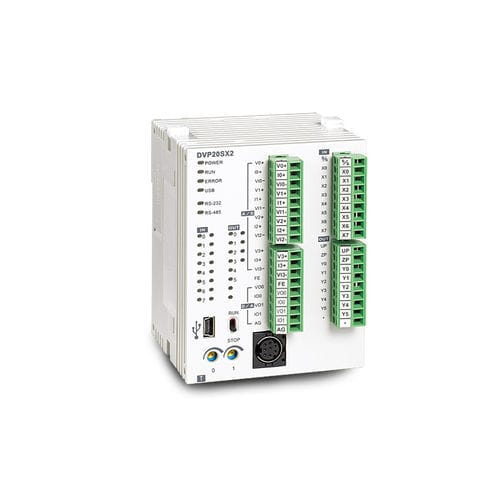

The 2nd generation DVP-SX2 series slimline PLC has 14 digital I/Os and 12-bit built-in analog I/Os. It can be extended with DVP-S series left-side and right-side extension modules.

Applications
Used for PID temperature/humidity control, 2-axis AC motor drive constant speed control, temperature control using a analog signal monitoring of a whole factory. (PLC EASY LINK)

Specifications
MPU points: 20 (8DI/6DO, 4AI/2AO)
Max. I/O points: 494 (14 + 480)
Program capacity: 16k steps
COM port: Built-in RS-232, RS-485 & USB ports, compatible with ASCII/RTU protocol. Can be master or slave.
High-Speed Pulse Output: Supports 2 points (Y0, Y2) of 100kHz and 2 points (Y1, Y3) of 10kHz independent high-speed pulse output.
Built-in High-Speed Counters
Built-in Analog I/O

Parameter Name	Parameter Value
Number of axes	2-axis
Motor type	AC
Signal type	digital analog RS-485 RS-232
Technology	PID
Other characteristics	compact with programmable logic controller (PLC)
Product applications	for PLC network
