FEATURES
- 16 analog inputs (16 bit, ±10V, ±5V, ±2V, ±1V)
- total sampling rate 250kHz
- 2 analog outputs (16 bit, ±10V)
- 32 digital channels (2x16 bit, TTL/CMOS)
- 3 counters (32 bit, max. 16 MHz) for pulse, incremental encoder, or pulse-time measurement
- power supply via network (PoE) or externally with 12-40V
- galvanically isolated to LAN, power supply
- TCP/IP Ethernet (Twisted Pair)
- synchronized to real-time

DAQ VIA NETWORK. REMOTE.

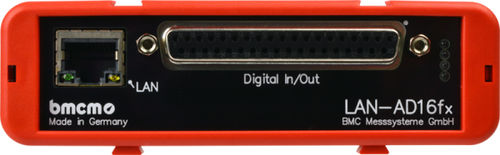

The LAN technology of the LAN-AD16fx allows for measurement applications across great distances. The number of measuring points, where the devices are installed, is basically not limited. Data transmission to a server PC is fast and reliable.

PoE. SELF-SUPPLIER.
The device can be supplied with power via network (Power over Ethernet). This reduces cabling efforts to a minimum and makes mobile measurements a lot easier.

TCP/IP. GUARANTEED RELIABLE.
The LAN-AD16f uses the TCP/IP protocol providing for safe and complete data transmission. Besides that, transmission via internet is possible - data acquisition with absolutely new possibilities.

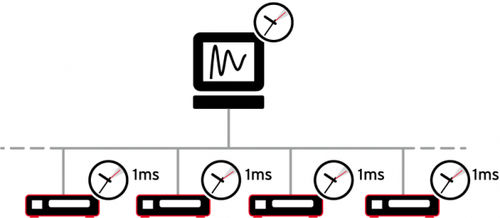

CASCADABLE. SYNCHRONIZABLE.
The number of DAQ systems and with it the number of available channels is only limited by the bandwidth of the network. Several LAN-AD16f devices can be synchronized with each other. If so, all measured data in distributed operation always keep time even with long-term measurements.

Parameter Name	Parameter Value
Number of channels	16-channel 32-channel
Mounting	benchtop
Options and accessories	WLAN
