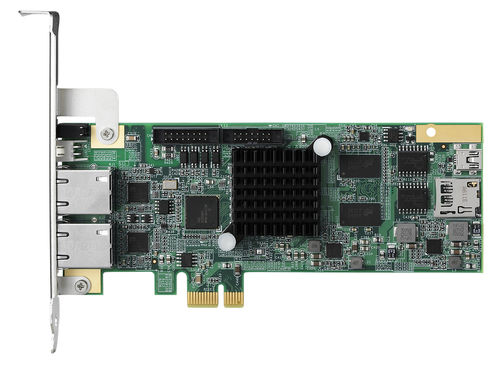

ADLINK PCIe-8332 is a hardware-based EtherCAT motion controller able to support up to 16 synchronized axes and over 10,000 points simultaneously. The PCIe-8332 features dedicated isolated emergency stop input (EMG), and configurable isolated high-speed digital input as not only generic sensor input but also pulsar input, with up to 1MHz input frequency. Optimum jitter control is provided in minimal cycles of 250µs to optimize synchronous I/O performance for vertical automation applications in semiconductor, electronic manufacturing, and others. The PCIe-8332 provides an out-of-shell application-ready (APS) function library to generate multi-dimensional, highly synchronized, time-deterministic event-triggered motion & I/O control. A wide range of compatible 3rd party slaves are easily designed with ADLINK's APS function library. ADLINK's MotionCreatorPro 2 utility is fully compliant with the Microsoft Windows environment, that allows complete EtherCAT motion and I/O configuration and function evaluation as well as compiling program download functions.

Parameter Name	Parameter Value
Number of axes	16-axis
Motor type	synchronous
Signal type	EtherCAT digital
Technology	electronic
Other characteristics	high-speed
Product applications	control
