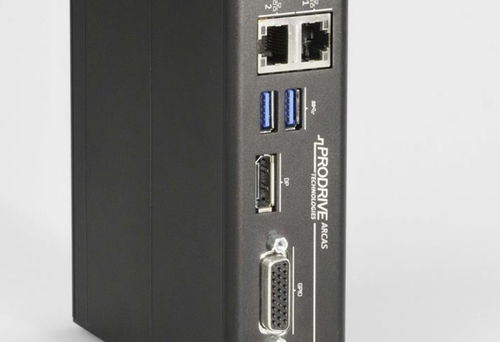

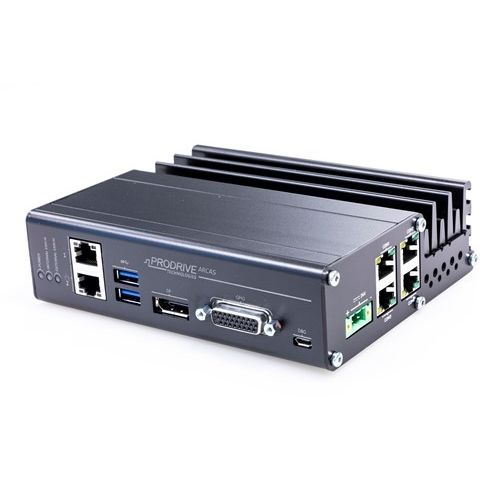

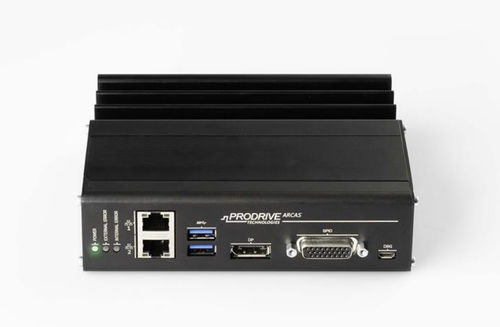

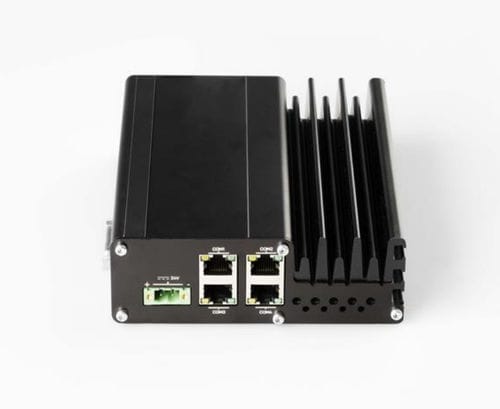

The Arcas motion controller provides excellent performance in a compact form factor. It is ideal for motion applications requiring up to 12 axes.

The Arcas supports simultaneous usage of its EtherCAT, CANopen and IObus device interfaces, allowing, for example, combined control of high performance EtherCAT drives and low-cost CANopen devices.

The Arcas is a perfect suit for high longevity applications due to its long lifecycle support (>10 years).

-Up to 12 axes @ 10kHz
-Gigabit Ethernet host interface
-Panel or din rail mounting
-Quad Cortex-A53 @ 1.5GHz
-8 GPIO
-Display port
-IEC 61000-6-1, IEC 60068-2-27 compliant

Specifications

Power input
Vlogic input voltage, rated
12VDC - 24VDC
Vlogic input voltage, absolute max.
28VDC
Maximum input power
35W

General purpose inputs/outputs
Isolated digital inputs
4 x 24V input (VIH≥11V, VIL≤5V, IIN<15mA)
Isolated digital outputs
4 x 0-30V / 500mA

Control
Processor
Quad Cortex-A53@ 1.5GHz
Number of cores real-time
3
Number of cores management
1
Number of axes
12 axes @ 10kHz
Host interface
Gigabit Ethernet
Device interfaces -
1x EtherCAT bus
2x CANopen bus
2x IO bus

Mechanical
Dimensions (WxDxH)
44 x 132 x 160mm
Mass
850g

Lifetime
≥ 10 Years

Parameter Name	Parameter Value
Number of axes	multi-axis 12-axis
Signal type	EtherCAT CANopen
Technology	advanced
Other characteristics	compact high-performance programmable synchronization 12/24V Endat analog output with I/O
Product applications	industrial 3D motion positioning for automation for medical applications for semiconductors OEM panel
