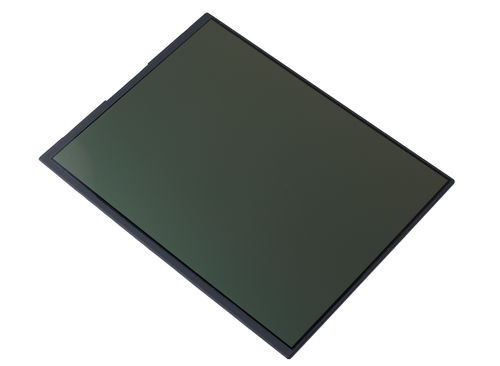

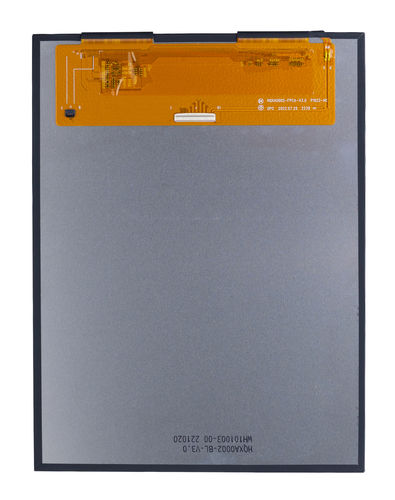

10.0” LCM ECO-Friendly Paper Display Transflective with Backlight

The HSD100GPN1-900001-PX is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device.
It is a transflective-type display that consists of a TFT LCD panel, driving circuit, and a backlight system.
With a 10.0-inch diagonal measurement, the active display area features a resolution of 1536 horizontal by 2048 vertical pixels.

10.0” Transflective TFT-LCD Module
Backlight system
HannStar Argentum Birefringence Display Technology
Sunlight Readable, Anti-Glare
16.7M Display Colors
Resolution 1536 x 2048
Wide temperature range -20°C ~ +70°C
Interface: 2port MIPI
Fast response time
Eco-friendly / Eye-Care
Ultra-Low power consumption

Parameter Name	Parameter Value
Type	color LCD/TFT transflective
Format	2048 x 1536
Applications	information digital signage
Other characteristics	MIPI backlit sunlight-readable
Width (mm)	214.1 - 214.1
Height	152.5248 mm (6.0049 in)
