• Fully-integrated servo-controller with drive
• Compact benchtop device, external AC/DC-power supply
• For voice coil drives, DC motors, and brushless 3-phase motors; quiet PWM drives
• Encoder inputs support incremental (analog sine/cosine) and absolute (BiSS-C, EnDat 2.2) encoders
• Output current up to 10 A continuous / 20 A peak
• Functional safety: STO (Safe Torque Off)

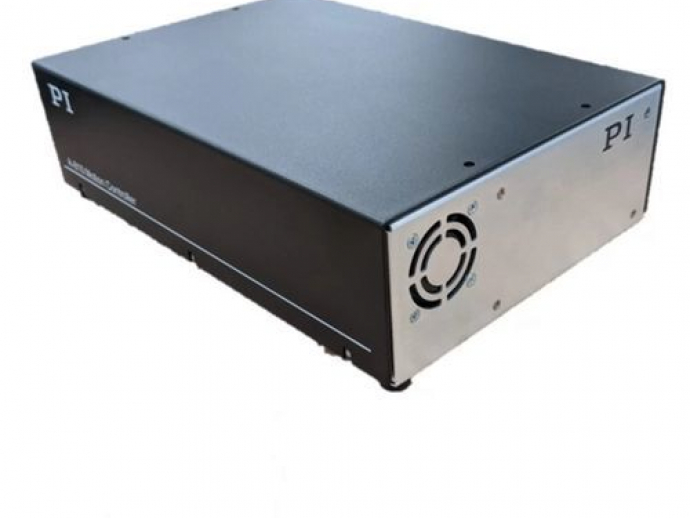

PI's single-axis motion controller A-811.CE offers a fully integrated electronics solution with controller and servo drive in a compact desktop housing. The A-811.CE controller is designed and optimized for operating the PIglide air-bearing linear and rotation stages, and other PI stages which are equipped with servomotor and high-resolution encoders.

The standard controller is equipped with inputs for incremental and absolute encoders. Support for sine/cosine encoders has an integrated interpolation factor of up to 65536x (16 bit). The controllers has an on-board flash memory for stored motion programs and parameters.

It is possible to operate the A-811.CE controller in stand-alone mode via stored programs, or from an external PC. A PC is required for programming and startup. The complete software is included in the scope of delivery.

If the controller is purchased together with a PIglide air bearing stage or positioning system, PI will do the servo tuning, startup of the controller, and error calibration, and supply a complete ready-to-use positioning system.

The A-811.CE features the state-of-the-art ACS ECMsa Motion Controller with integrated servo drive.

Parameter Name	Parameter Value
Number of axes	1-axis
Motor type	DC brushless
Signal type	Ethernet
Technology	integrated
Other characteristics	compact Endat
