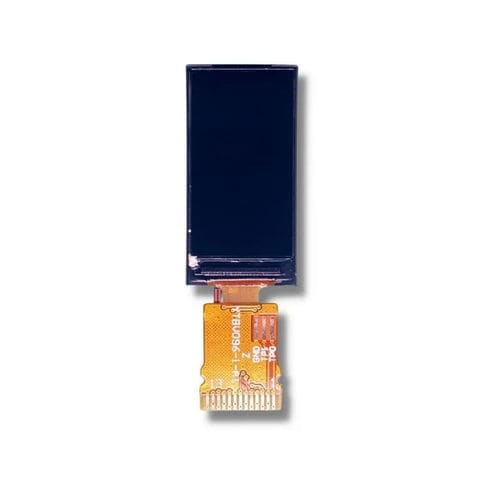

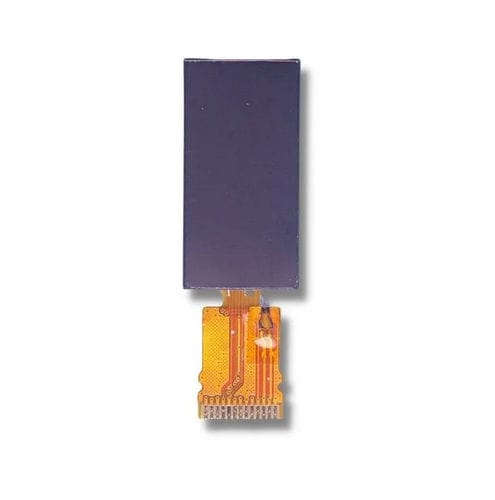

TTS096HVV-01 | 0.96 inch IPS TFT LCD | 80X160 Pixels | 4-line SPI |

Small IPS TFT is applicable to portable gadgets in the health care and wearable area.
It provides a full view, people could see the display image from any angle.
This Liquid Crystal Display has a built-in NV3022B controller.
Optional custome solution with capacitive or resistive touchscreen.
The material is RoHS compliant.

Diagonal (inch): 0.96″
Display Type: IPS
Display Mode: Transmissive
Optimal View: Full View
Touch screen: None
Module Dimensions (mm) (W x H x D): 14.04×27.95×1.76
Active Area (mm) (W x H): 10.80×21.70
Luminance (cd/m2): 200
Interface: 4L SPI
Driver IC: NV3022B
Operational Temperature (°C): -20 ~ +70
Storage Temperature (°C): -30 ~ +80

Parameter Name	Parameter Value
Type	TFT IPS
Format	80x160, 4-line
Applications	industrial instrumentation for medical equipment
Other characteristics	SPI portable built-in
